| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,695 pcs
|
2695 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector System | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Gender | |
| Contact Material | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Maximum Operating Temperature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| Shrouded | |
| Termination Type | |
| Voltage Rating |

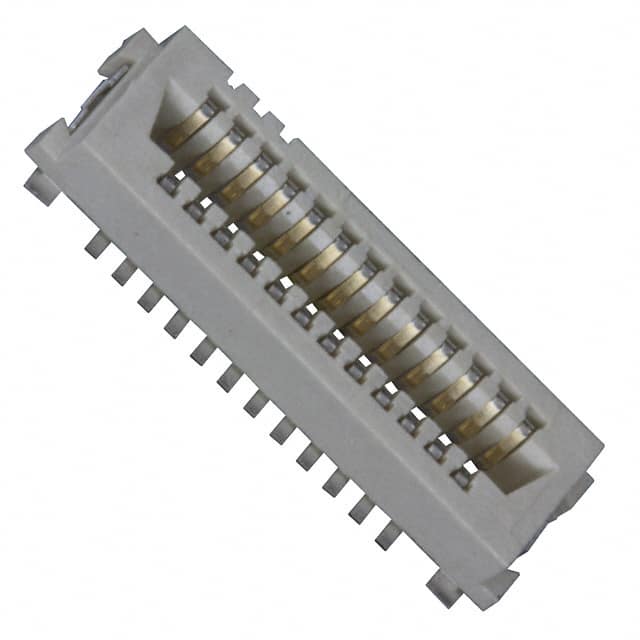

The 91930-21125LF is a board-to-board receptacle from Amphenol ICC's 91930 series, designed for high-density mezzanine stacking applications. It features 25 contacts arranged in a single row with a 1.00mm pitch, enabling compact PCB designs. The receptacle is shrouded for protection and uses surface mount technology with solder termination.
The connector supports mated stacking heights ranging from 4.15mm to 7.52mm, providing flexibility for various board-to-board distances. The contacts are made of copper alloy or phosphor bronze with a gold or gold GXT finish (15.0µin thickness) for reliable signal integrity. The housing is liquid crystal polymer with a UL94V-0 flammability rating, ensuring robust performance in demanding environments.
Electrical ratings include 1A per contact and 500V, with a maximum operating temperature of 105°C. Additional features include a board guide and solder retention for secure mounting. The part is supplied in tubes of 100 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.17 | $4.17 |
| 10+ | $3.54 | $3.54 |
| 35+ | $3.25 | $3.25 |
| 70+ | $3.09 | $3.09 |
| 105+ | $3.00 | $3.00 |
| 280+ | $2.80 | $2.80 |
| 525+ | $2.68 | $2.68 |
| 1,015+ | $2.56 | $2.56 |
| 2,520+ | $2.40 | $2.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
1.00 mm (0.039 inches).
1 A per contact.
500 V.
Surface mount (SMD).
105°C.
4.15 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 7 mm, and 7.52 mm.
