| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

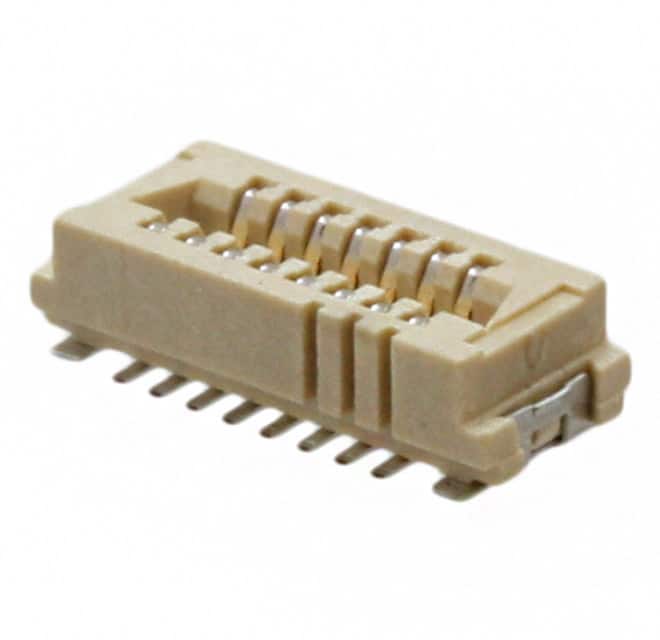

The 91930-21115LF is a 15-position receptacle connector with outer shroud contacts from Amphenol ICC. It features 2 rows at a 1.00mm pitch and is designed for surface mount (SMD) attachment. The connector supports mated stacking heights ranging from 4.15mm to 7.52mm, making it suitable for various board-to-board spacing requirements.
Contact surfaces are finished with gold or Gold, GXT™, with a thickness of 15.0 microinches (0.38 micrometers), ensuring reliable and durable electrical connections. The connector includes mechanical features such as a board guide and solder retention to aid in automated assembly and improve board-level reliability.
This component falls under the Arrays, Edge Type, Mezzanine (Board to Board) category and is intended for compact electronic assemblies requiring a low-profile, high-density interconnect solution. The surface-mount package supports reflow soldering processes commonly used in modern PCB manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.26 | $3.26 |
| 10+ | $2.77 | $2.77 |
| 49+ | $2.47 | $2.47 |
| 98+ | $2.35 | $2.35 |
| 147+ | $2.29 | $2.29 |
| 294+ | $2.18 | $2.18 |
| 539+ | $2.09 | $2.09 |
| 1,029+ | $1.99 | $1.99 |
| 2,548+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
1.00mm (0.039 inches).
Surface mount.
Gold or Gold, GXT™ with 15.0µin thickness.
4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, and 7.52mm.
Yes, it includes board guide and solder retention.
