| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
137 pcs
|
137 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

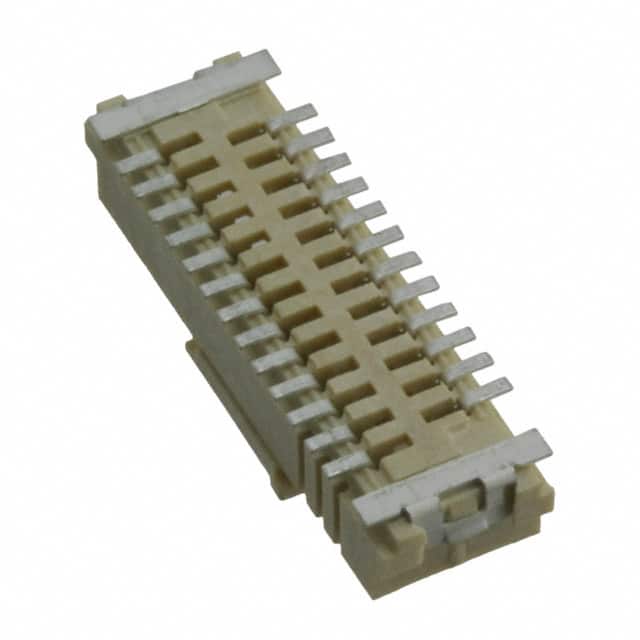

The Amphenol ICC 91921-31125LF is a 25 position receptacle connector featuring outer shroud contacts. It has a 1.00mm pitch and a 2 row configuration. The connector is surface mount and includes solder retention features for reliable board attachment. The contact finish is gold or Gold, GXT™ with a thickness of 0.38µm. The height above board is 3.28mm and it supports mated stacking heights of 4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, and 7.52mm. This connector is suitable for board-to-board mezzanine applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.86 | $2.86 |
| 10+ | $2.43 | $2.43 |
| 25+ | $2.27 | $2.27 |
| 50+ | $2.17 | $2.17 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.93 | $1.93 |
| 800+ | $1.64 | $1.64 |
| 1,600+ | $1.61 | $1.61 |
| 2,400+ | $1.65 | $1.65 |
| 3,200+ | $1.47 | $1.47 |
| 4,000+ | $1.59 | $1.59 |
| 5,600+ | $1.55 | $1.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm (0.039").
It has 25 positions.
Surface mount.
Gold or Gold, GXT™ with a thickness of 0.38µm.
3.28mm.
4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, and 7.52mm.
