| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Failure Rate | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

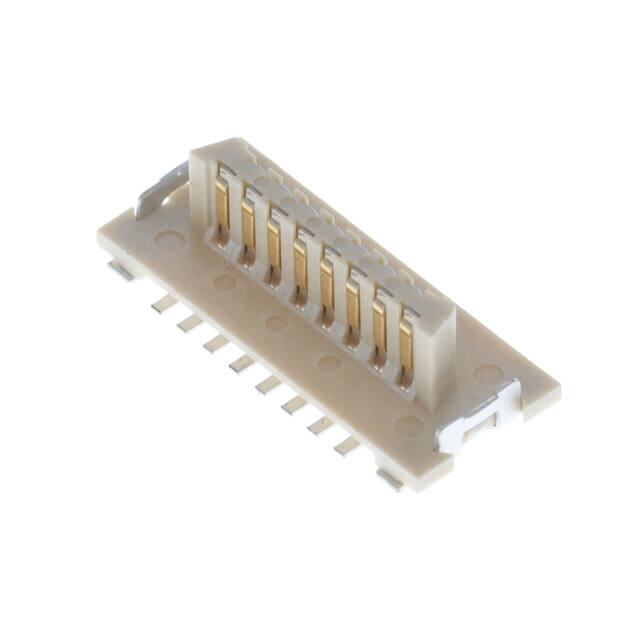

The Amphenol ICC (FCI) 91911-31115LF is a 15-position mezzanine board-to-board header connector from the Conan and MezzSelect series. It has 2 rows with a 1.00mm pitch, designed for compact, high-density interconnections. The connector features a surface mount termination with board guide and solder retention for reliable assembly.
The contacts are made of copper alloy with a gold or Gold GXT finish of 15.0µin (0.38µm). The housing is polymer. The mated stacking height is 4.15mm and the height above board is 0.034" (0.86mm). This part is lead-free with JESD-609 code e3 and is RoHS compliant (unverified).
Packaging is Tape & Reel (TR), suitable for automated pick-and-place. The connector is designed for mezzanine board-to-board applications where a low profile and high reliability are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.36 | $3.36 |
| 10+ | $2.85 | $2.85 |
| 25+ | $2.67 | $2.67 |
| 50+ | $2.55 | $2.55 |
| 100+ | $2.43 | $2.43 |
| 250+ | $2.27 | $2.27 |
| 800+ | $2.09 | $2.09 |
| 1,600+ | $1.99 | $1.99 |
| 2,400+ | $1.94 | $1.94 |
| 4,000+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions in 2 rows.
1.00mm (0.039").
Surface Mount (SMT).
4.15mm.
Gold or Gold, GXT™ with a thickness of 15.0µin (0.38µm).
RoHS3 Compliant (unverified).
Tape & Reel (TR).
