| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Country of Origin | |
| Current Rating | |
| Failure Rate | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Pitch | |
| Termination Style | |
| Voltage Rating |

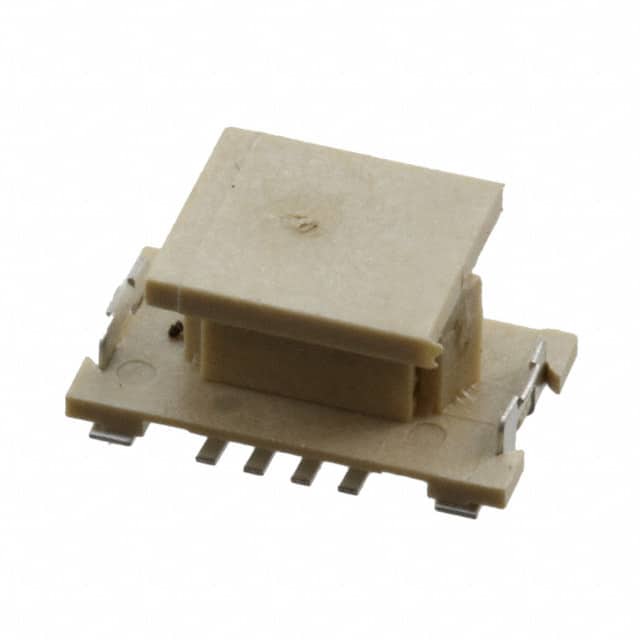

The Amphenol ICC 91911-31109LF is a 9-position, single row, straight surface mount board-to-board header from the 91911 series. This shrouded connector has a 1.00 mm pitch and a low profile height of 0.034" above the board, making it suitable for compact stacked configurations with a mated height of 4.15 mm.
Key specifications include gold or GXT™ plated contacts made from copper alloy and phosphor bronze, and a housing molded from liquid crystal polymer (LCP) with UL94V-0 flammability rating. The header is rated for 1 A current per contact and 500 V maximum voltage, with an operating temperature range up to 105°C.
Designed for surface mount soldering, the component includes integrated board guide and solder retention features to aid assembly. Typical applications include mezzanine board-to-board interconnections in space-constrained electronic devices.
| Qty | Low | High |
|---|---|---|
| 4,000+ | $1.85 | $1.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions in a single row.
The contact pitch is 1.00 mm.
The maximum current rating is 1 A per contact.
The maximum voltage rating is 500 V.
This header is designed for surface mount soldering.
