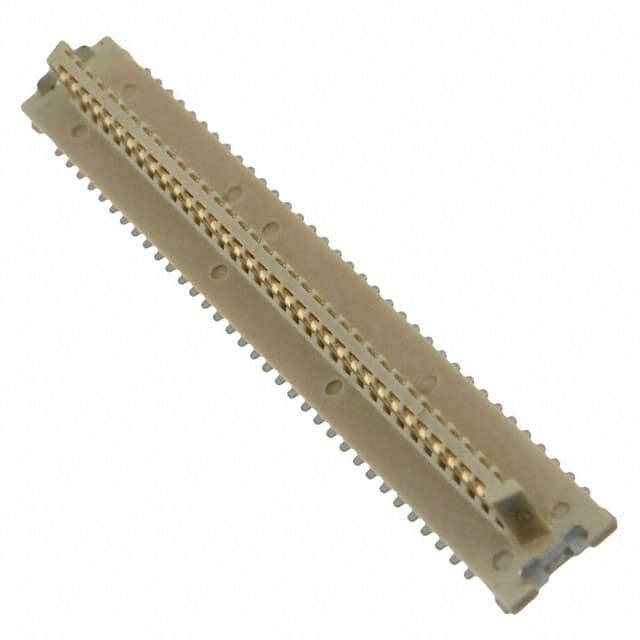

91910-21169 Amphenol ICC 91910-21169 69-position, 2-row, 1.00mm pitch surface mount board-to-board header connector with gold contacts and 0.86mm height above board. It features board guide and solder retention for reliable assembly.
Mfr Part #:

91910-21169

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 91910-21169 69-position, 2-row, 1.00mm pitch surface mount board-to-board header connector with gold contacts and 0.86mm height above board. It features board guide and solder retention for reliable assembly.
✓ Total Stock: 210 pcs
$ Price Range: $3.08

91910-21169 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
210 pcs
On Request
210 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

91910-21169 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

91910-21169 Description

Short technical summary and product information.

The Amphenol ICC 91910-21169 is a 69-position, 2-row board-to-board header connector with a compact 1.00mm pitch, designed for high-density mezzanine board stacking applications.



This surface mount connector features gold or Gold GXT™ contact finish of 15.0µin (0.38µm) thickness, ensuring robust signal integrity and durability in repeated mating cycles. With a height above board of just 0.034" (0.86mm), it supports a mated stacking height of 4.15mm, ideal for low-profile interconnects.



The connector includes board guide and solder retention features for secure placement during reflow soldering. It is RoHS3 compliant and REACH unaffected, meeting current environmental standards.

91910-21169 Quick Information

Product Type: Board-to-Board Connector Header
Canonical Name: 69 Position 2 Row 1.00mm Pitch Surface Mount Header Center Strip Contacts
Subcategory: Mezzanine Connector

91910-21169 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

91910-21169 Estimated Pricing

Qty Low High
420+ $3.08 $3.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

91910-21169 Features

  • 69 positions in 2 rows.
  • 1.00mm pitch for high density.
  • Gold contact finish 15.0µin thick.
  • Surface mount with 0.86mm profile.
  • Board guide and solder retention.

91910-21169 Applications

  • Board-to-board mezzanine stacking.
  • Low-profile portable electronics.
  • High-density connector applications.

91910-21169 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 91910-21169 connector have?

It has 69 positions arranged in 2 rows.

What is the pitch of the 91910-21169?

The pitch is 1.00mm (0.039 inches).

What is the mounting type for this connector?

It is a surface mount (SMD) connector.

What is the height above board for the 91910-21169?

The height above board is 0.034 inches (0.86mm).

What contact finish does the 91910-21169 have?

The contact finish is gold or Gold GXT™ with a thickness of 15.0 microinches (0.38 micrometers).

Does the 91910-21169 include board guide or solder retention?

Yes, it includes board guide and solder retention features.
