| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,024 pcs
|
2024 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Length - Mating | |
| Contact Length - Post | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch - Mating | |
| Row Spacing - Mating | |
| Shrouding | |
| Style | |
| Termination |

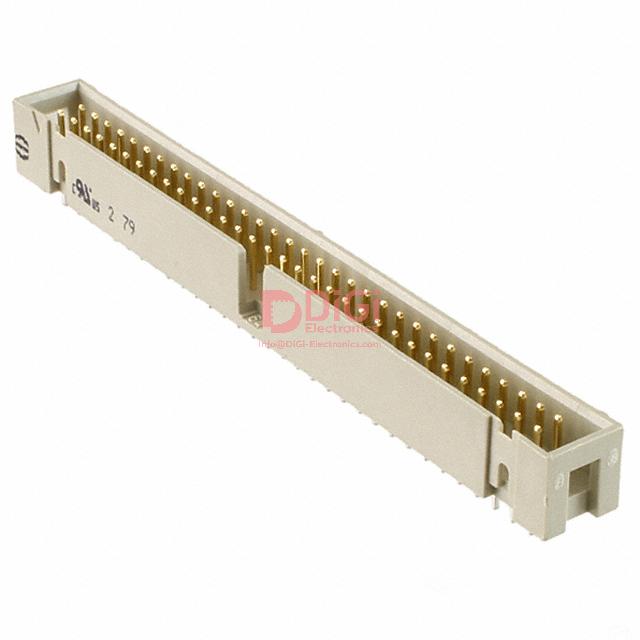

This HARTING 09185646324 is a vertical connector header from the SEK series, designed for board-to-cable/wire applications. It features 64 male pin positions arranged in 2 rows with a mating pitch of 2.54mm.
The header has a through-hole mounting type and a solder termination. It is shrouded with 4 walls and utilizes a latch holder for secure fastening. The contact length for mating is 6.10mm, and the post contact length is 2.90mm.
This component is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its status is listed as Active.
Ideal for various electronic interconnect applications requiring reliable connections, this connector header offers a robust solution for signal transmission.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the HARTING 09185646324 connector header is 2.54mm.
The HARTING 09185646324 connector header has 64 positions.
The HARTING 09185646324 connector header uses through hole mounting.
The HARTING 09185646324 connector header is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the HARTING 09185646324 connector header is 1 Unlimited.
