| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Length - Mating | |
| Contact Type | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch - Mating | |
| Row Spacing - Mating | |
| Shrouding | |
| Style | |
| Termination |

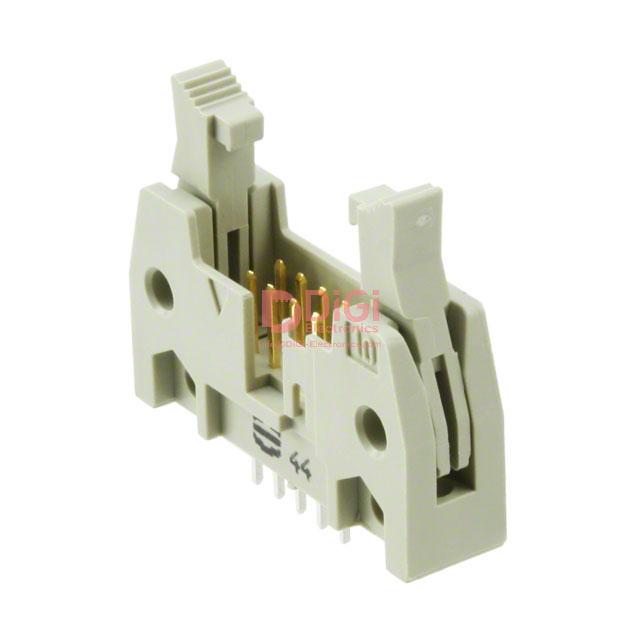

This HARTING 09185107904 is a vertical connector header designed for board-to-cable applications. It offers 10 positions with a mating pitch of 0.100" (2.54mm) and a row spacing of 2.54mm. The header is shrouded with 4 walls and features a through-hole mounting type with solder termination.
Key mechanical features include a male pin contact type and a fastening mechanism with latch lock/eject hooks. The contact length for mating is 5.80mm. This component is supplied in tray packaging.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. This connector is suitable for various electronic interconnections where a reliable header is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the HARTING 09185107904 connector header is 2.54mm.
The HARTING 09185107904 connector header has 10 positions.
The HARTING 09185107904 connector header uses through hole mounting.
The termination style for the HARTING 09185107904 connector header is solder.
