| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

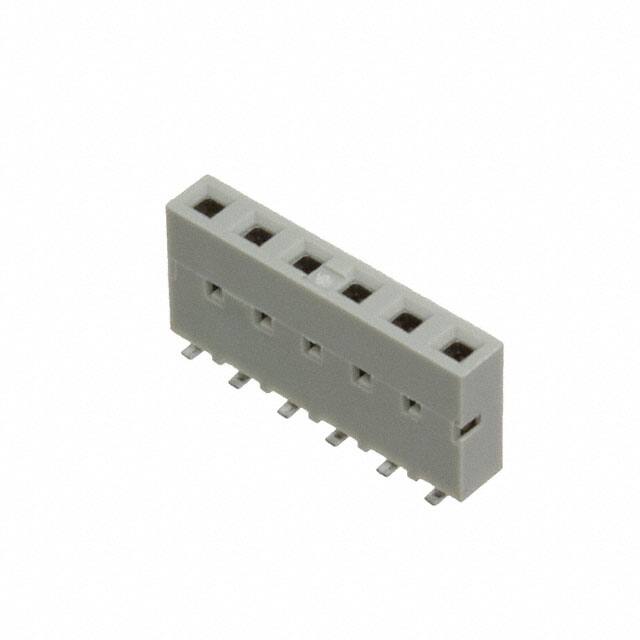

The Amphenol ICC 91601-306LF is a board-to-board rectangular connector receptacle with 6 positions arranged in a single row. It features a pitch of 2.54mm (0.100 inches). The connector uses female socket contacts with a tin finish of 30.0µin thickness and is designed for surface mount soldering termination. The mating style is push-pull with a fastening type of push-pull. The mated stacking height is 10.81mm. The insulator is gray in color with a height of 6.99mm (0.275 inches). The housing is rated UL94 V-0 for flammability. The connector supports bottom or top entry and is intended for board-to-board stacking applications. All 6 positions are loaded. The product is listed as RoHS3 and REACH compliant and has a moisture sensitivity level of MSL 1 (unverified). The manufacturer is Amphenol ICC.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 38+ | $0.78 | $0.78 |
| 114+ | $0.72 | $0.72 |
| 532+ | $0.65 | $0.65 |
| 1,026+ | $0.62 | $0.62 |
| 5,016+ | $0.55 | $0.55 |
| 10,032+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100 inches).
Surface mount.
Tin with 30.0µin (0.76µm) thickness.
Push-pull.
UL94 V-0.
10.81mm.
