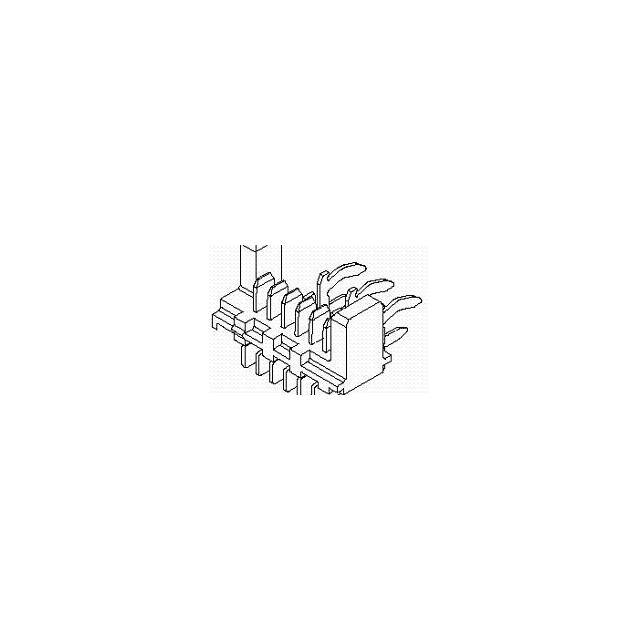

90800-0014 Molex 90800-0014 is a 1.27mm pitch right angle pin header designed for through-hole mounting with solder termination. It features a low profile staggered design with tin plating.
Mfr Part #:

90800-0014

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 90800-0014 is a 1.27mm pitch right angle pin header designed for through-hole mounting with solder termination. It features a low profile staggered design with tin plating.
✓ Total Stock: 13,577 pcs

90800-0014 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
13,577 pcs
On Request
13577 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

90800-0014 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mounting Type
Orientation
Pitch
Row Spacing
Termination Style
View Similar Products (0)

90800-0014 Description

Short technical summary and product information.

The Molex 90800-0014 is a 1.27mm pitch right angle pin header from the 90800 series. It features a low profile staggered design for compact PCB layouts. The header is through-hole mounted with solder termination, ensuring reliable connections. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). The part is suitable for applications requiring high-density interconnects.

90800-0014 Quick Information

Product Type: Pin Header
Series: Picoflex PF-50
Canonical Name: Molex 90800-0014 1.27mm Pitch Right Angle Pin Header, Through Hole, Solder Termination
Subcategory: Right Angle Headers

90800-0014 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

90800-0014 Features

  • 1.27mm pitch for high-density designs.
  • Right angle orientation saves space.
  • Low profile staggered pin layout.
  • Through-hole solder termination.
  • RoHS3 compliant and REACH unaffected.

90800-0014 Applications

  • Ideal for compact PCB stacking applications.
  • Used in high-density connector systems.
  • Suitable for right angle board-to-board connections.
  • Common in low profile interconnect designs.

90800-0014 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the Molex 90800-0014?

The pitch is 1.27 mm.

What is the mounting type of the 90800-0014?

Through Hole.

What is the orientation of the header?

Right Angle.

What is the termination style?

Solder.

Is the 90800-0014 RoHS compliant?

RoHS3 Compliant (unverified).

What is the Moisture Sensitivity Level (MSL)?

1 (Unlimited).

What is the REACH status of the product?

REACH Unaffected.
