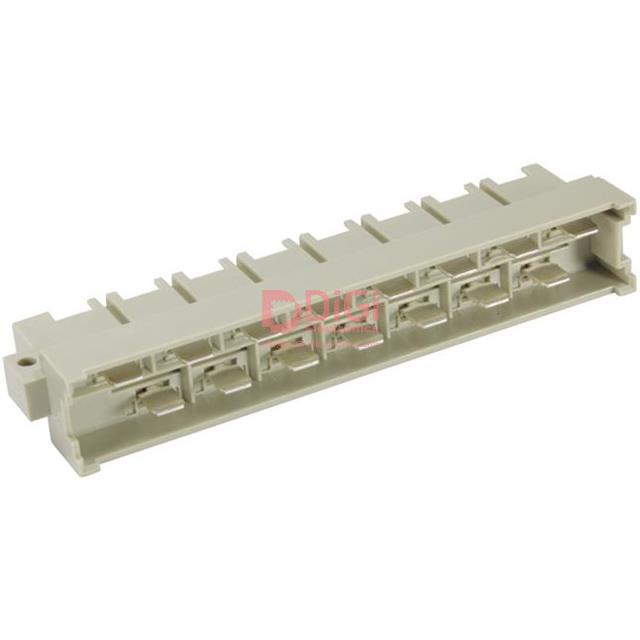

9060152912 The Harting 09060152912 is a DIN 41612 connector featuring 15 positions and a panel mount design. It utilizes quick connect termination and has a UL94 V-0 flammability rating.
Mfr Part #:

9060152912

Available from 1 distributors
Mfr Name: Harting
Harting
The Harting 09060152912 is a DIN 41612 connector featuring 15 positions and a panel mount design. It utilizes quick connect termination and has a UL94 V-0 flammability rating.
✓ Total Stock: 62 pcs
$ Price Range: $0.22

9060152912 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
62 pcs
On Request
62 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9060152912 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination Style
View Similar Products (0)

9060152912 Description

Short technical summary and product information.

This Harting 09060152912 connector is part of the DIN 41612 series and is designed for backplane applications. It features a header, male blades configuration with 15 positions, all of which are loaded.



The connector is designed for panel mounting and uses a quick connect termination style with a 0.250" (6.3mm) contact size. It has a pitch of 5.08mm and consists of 2 rows. The material has a flammability rating of UL94 V-0, ensuring safety in various applications.



This component is suitable for applications requiring reliable connections in backplane systems. Its robust construction and specific mounting and termination styles make it a practical choice for industrial and electronic assemblies.

9060152912 Quick Information

Product Type: DIN 41612 Connector
Series: DIN 41612
Canonical Name: Harting 09060152912 DIN 41612 Header, Male Blades Connector
Subcategory: DIN 41612

9060152912 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9060152912 Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

9060152912 Features

  • 15 position DIN 41612 connector.
  • Panel mount header with male blades.
  • Quick connect termination style.
  • 5.08mm pitch with 2 rows.
  • UL94 V-0 flammability rating.

9060152912 Applications

  • Suitable for panel-mounted DIN connector applications.
  • Used in electronic equipment requiring 15-pin connections.
  • Ideal for industrial control and automation systems.
  • Applicable in test and measurement equipment setups.
  • Suitable for high-density terminal block connections.

9060152912 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09060152912 connector have?

The Harting 09060152912 connector has 15 positions.

What is the pitch of the Harting 09060152912 connector?

The pitch of the Harting 09060152912 connector is 5.08mm.

What mounting type is used for the Harting 09060152912 connector?

The Harting 09060152912 connector uses a panel mount type.

What is the termination style of the Harting 09060152912 connector?

The termination style is Quick Connect - 0.250" (6.3mm).

What is the flammability rating of the Harting 09060152912 connector?

The material flammability rating is UL94 V-0.
