| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

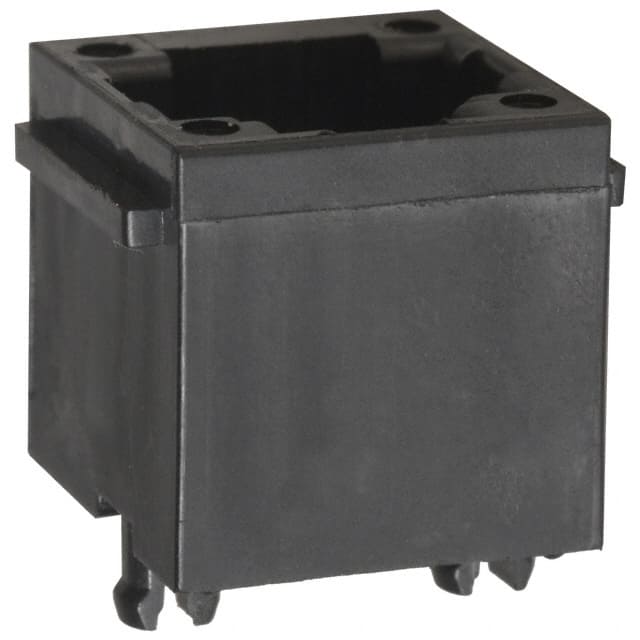

The 90598-001LF is a modular jack connector manufactured by Amphenol ICC, designed for 8P8C (RJ45) Ethernet and voice applications. It is a single-port, vertical-mount, through-hole connector with an unshielded design. The contact material is copper alloy with a gold finish, ensuring reliable conductivity and corrosion resistance. Additional mechanical features include board lock and panel stops for secure installation. This jack is rated Category 3 (Cat3), making it suitable for 10BASE-T Ethernet and voice applications. The component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (Unlimited), indicating no moisture sensitivity. The through-hole mounting provides robust mechanical attachment to the PCB, and the vertical orientation minimizes horizontal space usage. Typical applications include networking equipment, patch panels, and telecommunications devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.73 | $2.73 |
| 10+ | $2.32 | $2.32 |
| 30+ | $2.15 | $2.15 |
| 60+ | $2.04 | $2.04 |
| 120+ | $1.95 | $1.95 |
| 270+ | $1.84 | $1.84 |
| 510+ | $1.76 | $1.76 |
| 1,020+ | $1.67 | $1.67 |
| 2,520+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This jack has 8 positions and 8 contacts (8P8C), compatible with RJ45 connectors.
Through-hole mounting.
Vertical orientation.
No, it is unshielded.
Gold-plated contacts.
Board lock and panel stops.
Category 3 (Cat3) rated.
