| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,280 pcs
|
2280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Category Rating | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Positions/Contacts | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

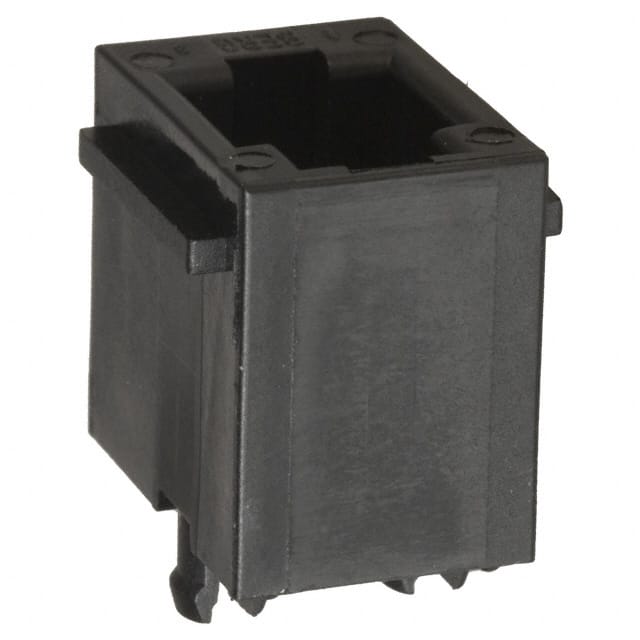

The 90511-001LF is a 4p4c modular jack manufactured by Amphenol ICC, designed for through hole mounting with solder termination. This unshielded jack features a single port and a single row of contacts made from copper alloy with gold finish for reliable electrical performance. The connector is rated Category 3, suitable for voice and low-speed data applications.
This jack has a vertical orientation with a user-selectable tab direction, offering flexibility in cable orientation. It includes board lock and panel stop features for secure mechanical retention during assembly and operation. The device does not contain an LED indicator.
The 90511-001LF is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 (unlimited), facilitating standard handling and assembly processes. Its compact 4p4c configuration makes it suitable for handset cords and other telephone-style connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
| 10+ | $1.52 | $1.52 |
| 40+ | $1.38 | $1.38 |
| 80+ | $1.31 | $1.31 |
| 120+ | $1.27 | $1.27 |
| 280+ | $1.20 | $1.20 |
| 520+ | $1.15 | $1.15 |
| 1,000+ | $1.10 | $1.10 |
| 2,520+ | $1.03 | $1.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This jack has a 4p4c configuration (commonly known as RJ9, RJ10, or RJ22).
Through hole.
Vertical.
No, it is unshielded.
Category 3 (Cat3).
Solder.
