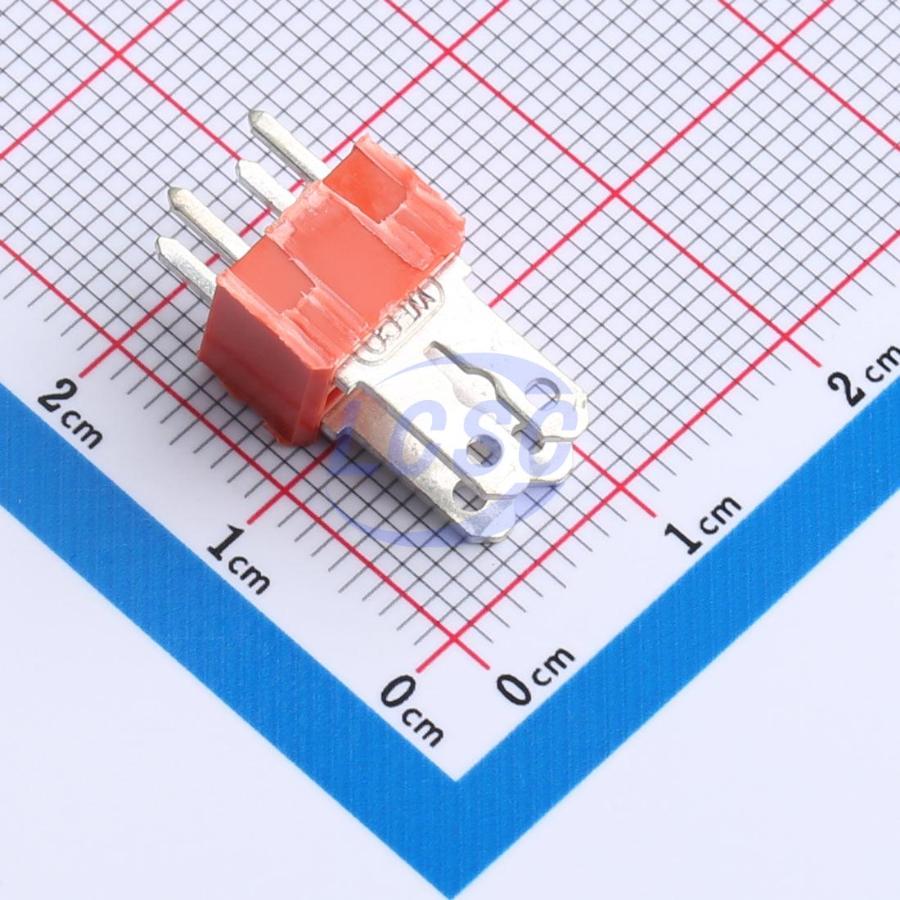

900-S-5/02 The WECO Electrical Connectors Inc. 900-S-5/02 is a 2-position tab connector with a 5mm pitch. It features a durable PA red V-0 housing and tin-plated brass solder pins and tabs.
Mfr Part #:

900-S-5/02

Available from 2 distributors
Mfr Name: WECO Electrical Connectors Inc.
WECO Electrical Connectors Inc.
The WECO Electrical Connectors Inc. 900-S-5/02 is a 2-position tab connector with a 5mm pitch. It features a durable PA red V-0 housing and tin-plated brass solder pins and tabs.
✓ Total Stock: 1,266 pcs
$ Price Range: $0.23

900-S-5/02 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
648 pcs
On Request
648 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
618 pcs
On Request
618 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

900-S-5/02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Length
Number of Positions
Pitch
SVHC Present
Temperature Range
Voltage Rating
View Similar Products (0)

900-S-5/02 Description

Short technical summary and product information.

The WECO Electrical Connectors Inc. 900-S-5/02 is a 2-position tab connector designed for reliable electrical connections. It features a 5mm pitch and is constructed with a red PA V-0 moulding material, offering good thermal and electrical properties.



The connector supports two different tab sizes: 2.8 mm and 6.3 mm, with corresponding current ratings of 7.5A and 15A respectively. The rated voltage is 320V, with a rated impulse voltage of 4kV. The operating temperature range is from -40°C to 100°C.



This tab connector is suitable for applications requiring a secure and robust connection. It is designed for PCB mounting with a hole diameter of 1.6 mm. The solder pins measure 1.0 x 0.8 mm, and the tabs are 2.8 x 0.8 mm or 6.3 x 0.8 mm, all tin-plated brass for good conductivity.



The 900-S-5 series offers configurations from 2 to 25 poles, with this specific model being the 2-pole version. It is supplied in a box packaging with a standard quantity of 250 units.

900-S-5/02 Quick Information

Product Type: Tab Connector
Canonical Name: WECO Electrical Connectors Inc. 900-S-5/02 Tab Connector
Subcategory: Headers, Plugs and Sockets

900-S-5/02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

900-S-5/02 Estimated Pricing

Qty Low High
1+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

900-S-5/02 Features

  • 2-position tab connector with 5mm pitch.
  • Supports 2.8mm and 6.3mm tab receptacles.
  • Rated for 7.5A and 15A current.
  • Operates from -40°C to 100°C.
  • PA red V-0 housing material.

900-S-5/02 Applications

  • Ideal for PCB interconnects.
  • Suitable for power and control applications.
  • Used in industrial equipment.
  • Component for renewable energy systems.

900-S-5/02 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the WECO 900-S-5/02 tab connector?

The pitch of the WECO 900-S-5/02 tab connector is 5 mm.

How many positions does the WECO 900-S-5/02 tab connector have?

The WECO 900-S-5/02 tab connector has 2 positions.

What is the operating temperature range for the WECO 900-S-5/02 tab connector?

The operating temperature range for the WECO 900-S-5/02 tab connector is -40°C to 100°C.

What are the current ratings for the WECO 900-S-5/02 tab connector?

The WECO 900-S-5/02 tab connector has a rated current of 7.5 A with 2.8 mm receptacles and 15 A with 6.3 mm receptacles.

What is the rated voltage of the WECO 900-S-5/02 tab connector?

The rated voltage for the WECO 900-S-5/02 tab connector is 320 V, with a rated insulation voltage of 450 V.

What material is the WECO 900-S-5/02 tab connector housing made of?

The housing of the WECO 900-S-5/02 tab connector is made of PA, red, V-0.

What is the standard package quantity for the WECO 900-S-5/02 tab connector?

The WECO 900-S-5/02 tab connector is supplied in a box with a standard package quantity of 250 units.
