| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
420 pcs
|
420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

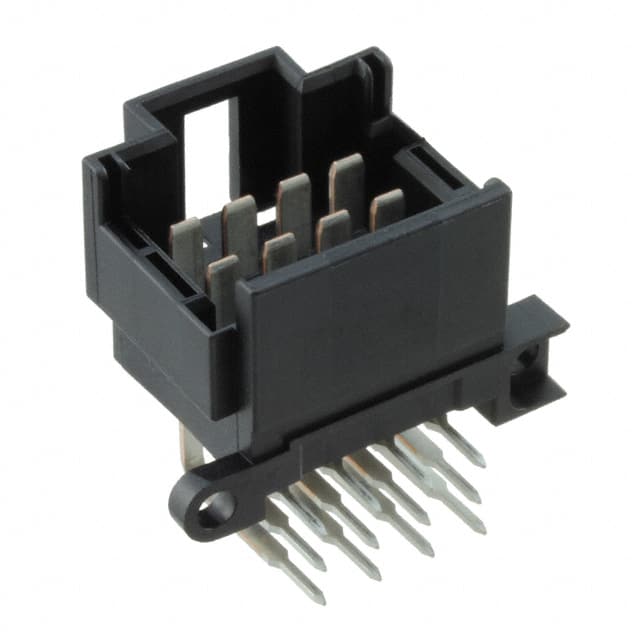

The TE Connectivity 9-966140-3 is a 12-position header connector designed for board-to-board or cable applications. It features a 3-row configuration with a 5.00mm pitch and 5.51mm row spacing. The connector uses rectangular tab contacts made of copper alloy with tin finish. The housing is made of glass-filled polyamide (PA66) in black color, with an insulation height of 25.70mm. It is shrouded with 4 walls and includes a latch holder for secure mating. The mounting type is through hole, right angle, with solder termination. The operating temperature range is -40°C to 100°C. A mounting flange is included for additional mechanical stability. This header is suitable for applications requiring robust connections in industrial or automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.46 | $4.46 |
| 10+ | $3.93 | $3.93 |
| 25+ | $3.35 | $3.35 |
| 100+ | $2.99 | $2.99 |
| 210+ | $2.90 | $2.90 |
| 420+ | $2.82 | $2.82 |
| 1,050+ | $2.52 | $2.52 |
| 2,520+ | $2.44 | $2.44 |
| 5,040+ | $2.38 | $2.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
5.00mm.
Through hole, right angle.
-40°C to 100°C.
Tin.
Yes, shrouded with 4 walls and a latch holder.
