| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

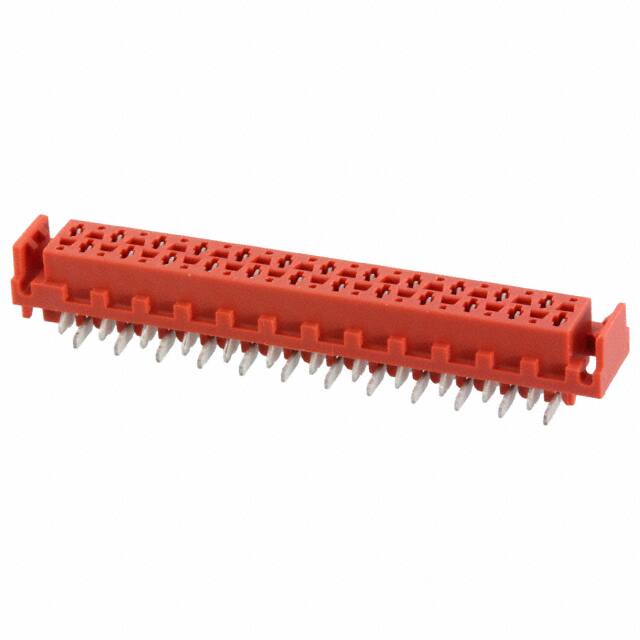

The TE Connectivity 9-338069-4 is a 24-position receptacle from the Micro-MaTch connector family, designed for board-to-board or cable interconnections. It features a 1.27mm pitch and 2.54mm row spacing, with all 24 positions loaded.
This surface mount device uses solder termination and tin-plated forked contacts. The friction lock fastening ensures secure mating, and the red insulation has a height of 5.30mm. It is rated for 100 VDC and operates from -40°C to 105°C. The housing material meets UL94 V-0 flammability rating.
The connector includes a pick and place feature for automated assembly. The Micro-MaTch contact design helps prevent fretting corrosion, making it suitable for applications with vibration or thermal cycling.
Typical applications include production and material handling equipment, control units, robots, automotive dashboard systems, base stations, set top boxes, and audio equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.32 | $6.32 |
| 10+ | $5.37 | $5.37 |
| 100+ | $4.56 | $4.56 |
| 900+ | $3.91 | $3.91 |
| 1,800+ | $3.72 | $3.72 |
| 2,700+ | $3.62 | $3.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 24 positions, all loaded, arranged in 2 rows.
The pitch is 1.27mm (0.050") per the Micro-MaTch datasheet.
The voltage rating is 100 VDC.
It is a surface mount device with solder termination.
The operating temperature range is -40°C to 105°C.
The insulation color is red.
It uses a friction lock fastening type.
