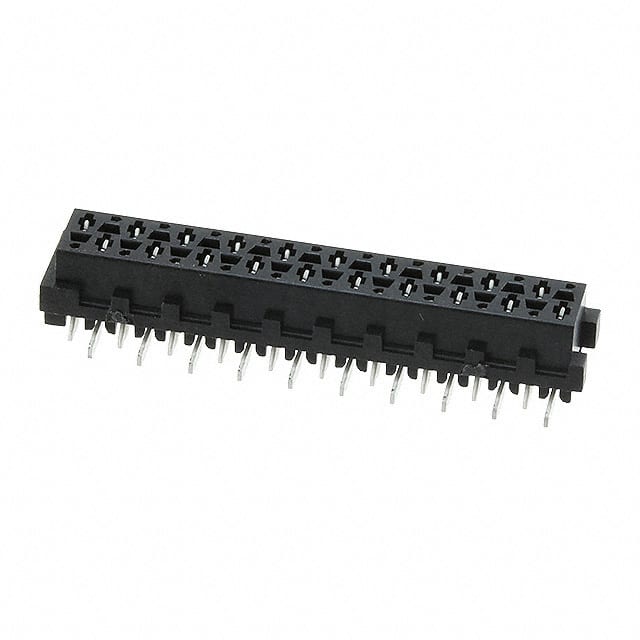

9-2178711-0 TE Connectivity 9-2178711-0 is a 20-position, 2-row surface mount receptacle with 2.54mm pitch and tin-plated contacts. It supports board-to-board or cable connections in a push-pull fastening design.
Mfr Part #:

9-2178711-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 9-2178711-0 is a 20-position, 2-row surface mount receptacle with 2.54mm pitch and tin-plated contacts. It supports board-to-board or cable connections in a push-pull fastening design.
✓ Total Stock: 900 pcs
$ Price Range: $1.34

9-2178711-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9-2178711-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

9-2178711-0 Description

Short technical summary and product information.

The TE Connectivity 9-2178711-0 is a 20-position rectangular receptacle connector with a 2.54mm pitch and two rows. It uses forked tin-plated contacts and is designed for surface mount soldering, supporting board-to-board or cable connections.



Rated for 100VDC, this connector operates over a -30°C to 85°C temperature range. Both rows are fully loaded with all positions populated. The push-pull fastening type ensures secure mating, and the black insulation with a 5.30mm height suits compact designs.



The surface mount footprint and pick-and-place feature allow automated assembly in high-volume manufacturing. With a contact finish thickness of 3.0µm, tin plating provides a reliable solder joint and durable contact surface. The 2.54mm row spacing matches standard PCB grid layouts.



Designed for board-to-board or cable applications, this receptacle offers a dependable interconnection solution for electronic assemblies.

9-2178711-0 Quick Information

Product Type: Receptacle Connector
Canonical Name: 20 Position 2.54mm Surface Mount Receptacle Connector
Subcategory: Headers, Receptacles, Female Sockets

9-2178711-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9-2178711-0 Estimated Pricing

Qty Low High
150+ $1.34 $1.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

9-2178711-0 Features

  • 20-position dual-row receptacle with 2.54mm pitch.
  • Surface mount solder termination.
  • Tin-plated forked contacts.
  • Rated for 100VDC operation.
  • Pick-and-place compatible for automated assembly.

9-2178711-0 Applications

  • Board-to-board internal connection applications.
  • Cable-to-board interconnection solutions.
  • Compact electronic equipment wiring.
  • Suitable for automated solder assembly.

9-2178711-0 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 9-2178711-0 have?

20 positions, all loaded, arranged in 2 rows.

What is the contact pitch of this receptacle?

2.54mm (0.100") pitch, with a matching 2.54mm row spacing.

What voltage rating is supported?

100VDC.

What mounting and termination options are available?

Surface mount with solder termination.

What is the operating temperature range?

-30°C to 85°C.

What is the contact finish?

Tin plating with a thickness of 3.0µm.

What is the row spacing?

Rows are spaced at 2.54mm (0.100").
