| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

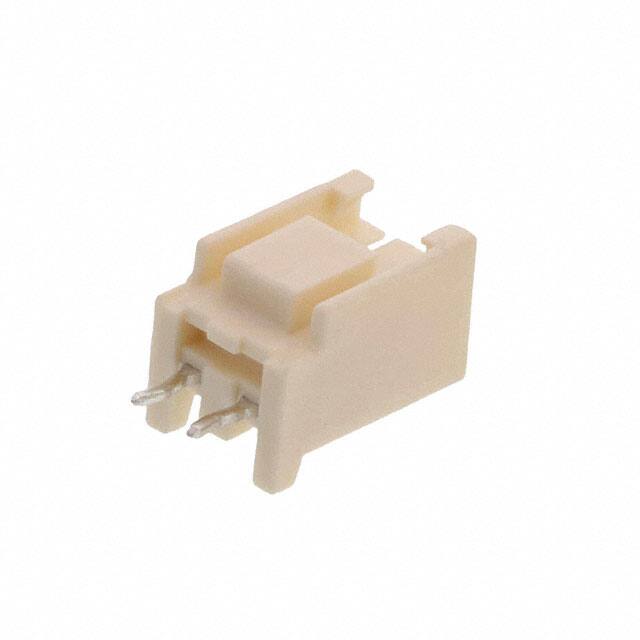

The TE Connectivity 9-176975-1 is a 2-position, single-row, through-hole header designed for board-to-cable/wire connections. It features a shrouded 4-wall design with a locking ramp fastening system for secure mating with compatible receptacles.
The header has a pitch of 3.96mm and an insulation height of 14.00mm. The contacts are made of brass with a tin finish, shaped as rectangular tabs. The insulation is made of glass-filled polyamide (PA66/Nylon 6/6) with a natural color, rated UL94 V-0 for flammability. The operating temperature range is -30°C to 105°C.
Mounting is through-hole with kinked pin solder termination. The contact length is 3.60mm. The connector is designed for all positions loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.57 | $0.57 |
| 10+ | $0.49 | $0.49 |
| 400+ | $0.38 | $0.38 |
| 800+ | $0.36 | $0.36 |
| 1,200+ | $0.35 | $0.35 |
| 5,200+ | $0.31 | $0.31 |
| 10,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 2 positions.
The pitch is 3.96mm (0.156 inches).
Through Hole.
The current rating varies by wire gauge used.
-30°C to 105°C.
Glass-filled polyamide (PA66/Nylon 6/6) with UL94 V-0 rating.
Tin.
