| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,700 pcs
|
3700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Plating | |
| Current Rating (Single Contact) | |
| Durability (Mating Cycles) | |
| Features | |
| Housing Material Flammability Rating | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Termination |

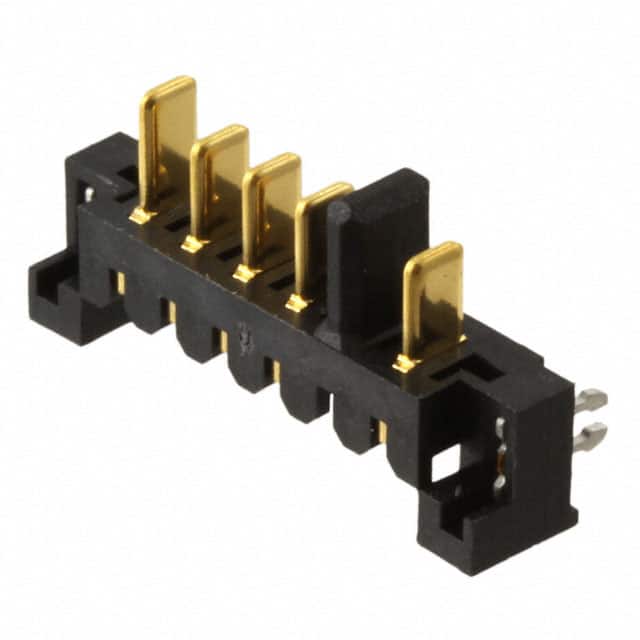

The TE Connectivity 9-1612503-1 is a battery connector plug designed for portable electronics. It has 5 positions in a single row with a 2.50mm pitch. The connector features a through hole right angle mounting style with solder termination and includes a board lock for secure attachment. The housing is made of UL 94V-0 rated black thermoplastic, ensuring flame retardancy. Contacts are AMP-DURAGOLD plated, providing durability up to 2500 mating cycles. The connector is rated for 7A per contact with a 30°C temperature rise and operates from -30°C to +70°C. This connector is part of TE's battery interconnect systems used in laptops and portable devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.99 | $3.99 |
| 10+ | $3.31 | $3.31 |
| 90+ | $2.77 | $2.77 |
| 180+ | $2.62 | $2.62 |
| 270+ | $2.54 | $2.54 |
| 540+ | $2.40 | $2.40 |
| 1,080+ | $2.27 | $2.27 |
| 2,520+ | $2.12 | $2.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.50mm (0.098").
7A per contact with 30°C temperature rise.
Through hole, right angle.
-30°C to +70°C.
2500 cycles.
UL 94V-0.
