| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Color | |
| Barrel Type | |
| China RoHS | |
| Color | |
| Compatible Insulation Diameter Range | |
| Connection Capacity | |
| Contact Base Material | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| ELV | |
| Gender | |
| Halogen Free | |
| Insertion Force | |
| Insulation | |
| Insulation Material | |
| Lead Style | |
| Length | |
| Mating Tab Thickness | |
| Mating Tab Width | |
| Mounting Type | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Product Length | |
| Quick Disconnect Terminal Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Orientation | |
| Terminal Type | |
| Termination | |
| Wire Gauge | |
| Wire size |

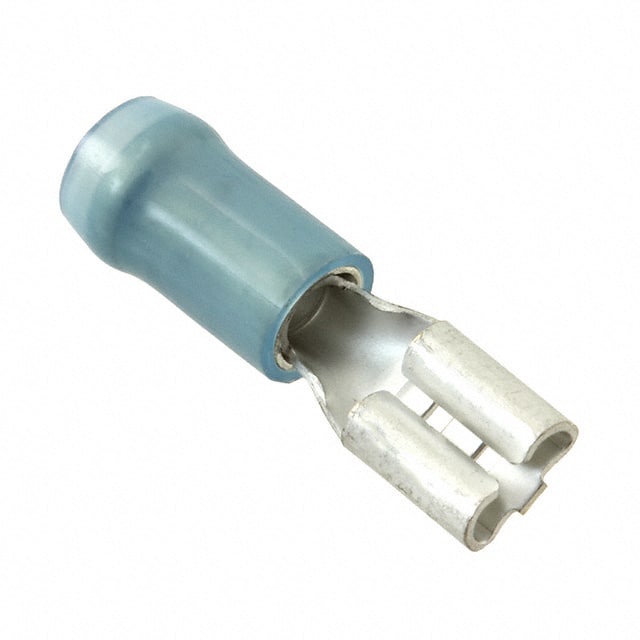

The TE Connectivity 9-160477-2 is a PIDG FASTON quick disconnect receptacle terminal designed for 14-16 AWG wire (2050-5180 CMA). It features a 4.8mm (0.189 in) mating tab width and 0.5mm (0.02 in) tab thickness, with a straight orientation. The contact is made of tin-plated brass with a closed barrel compression crimp termination. The nylon insulation covers the non-mating end, providing strain relief and protection. The terminal is blue, rated for single connection capacity with normal insertion force, and supports free hanging (in-line) mounting. Operating temperature range is up to 105°C (221°F). Packaging is 500 pieces per loose piece. Environmental compliance includes EU RoHS, ELV, China RoHS, REACH SVHC-free, and low halogen content.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line) mounting.
4.8 mm width and 0.5 mm thickness.
14-16 AWG with wire size 2050-5180 CMA.
Compression crimp with closed barrel.
Yes, it is EU RoHS Directive 2011/65/EU compliant.
Up to 105 °C (221 °F).
Blue nylon insulation, non-mating end insulated.
