| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,892 pcs
|
5892 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

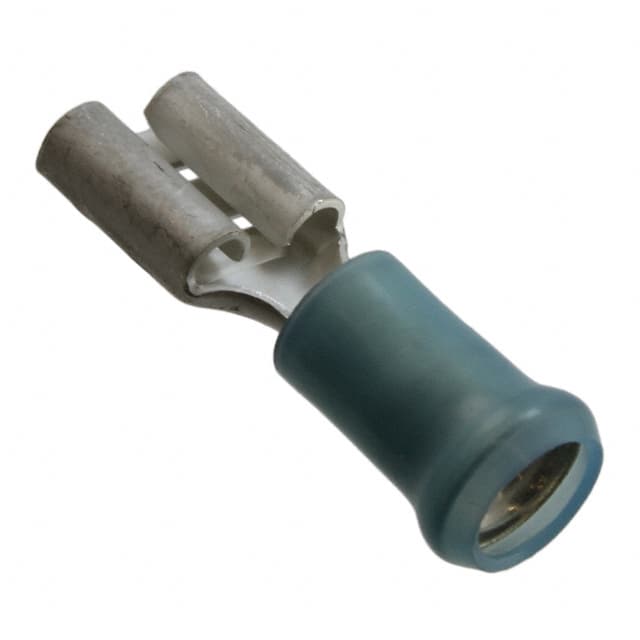

The TE Connectivity 9-160313-5 is a standard female quick disconnect receptacle designed for 13-17 AWG wire. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, with a tab length of 0.303" (7.70mm). The overall length is 23.20mm (0.913").
The contact is made of phosphor bronze with a tin finish, ensuring reliable electrical performance and corrosion resistance. The terminal is crimp-style and the non-mating end is insulated, with a blue color identifier. The mounting type is free hanging (in-line).
This component is suitable for power and signal connections in a variety of applications where a quick and secure disconnect is required. The crimp termination provides a strong mechanical and electrical bond when used with the appropriate tooling.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.75 | $0.75 |
| 25+ | $0.71 | $0.71 |
| 50+ | $0.67 | $0.67 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.57 | $0.57 |
| 1,000+ | $0.54 | $0.54 |
| 3,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.250" (6.35mm).
It accepts 13-17 AWG wire.
The termination method is crimp.
The contact is phosphor bronze with a tin finish.
The part is listed as RoHS3 Compliant, but this value is unverified.
