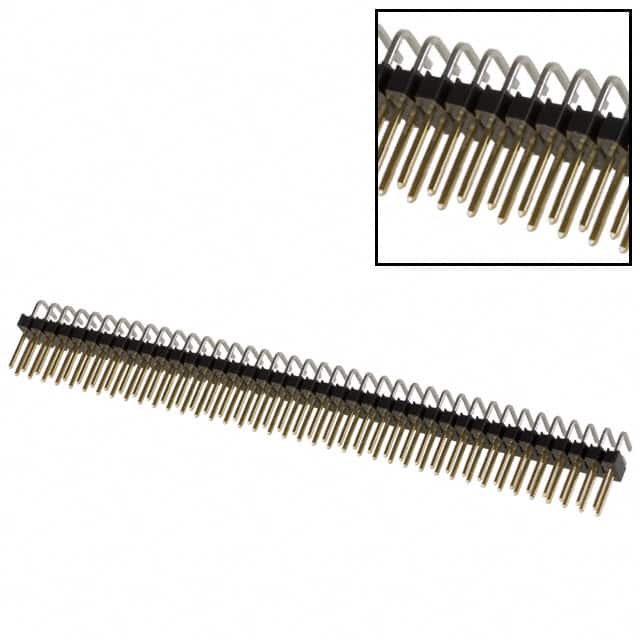

TE Connectivity 9-146309-0 is an 80-position unshrouded header designed for board-to-board or cable-to-board interconnects. It features two rows of square male pins with a 2.54mm pitch and 2.54mm row spacing, making it compatible with standard 0.100" grid patterns.
The connector is right-angle mounted through-hole with solder termination. The contacts are made of copper alloy with a tin finish of 30 microinches. The black glass-filled thermoplastic insulator has a flammability rating of UL94 V-0. The operating temperature range is -65°C to 105°C, and the current rating is 3A. Wave solder capable to 265°C.
RoHS3, REACH SVHC-free, EU ELV, and China RoHS 2 compliant. Not low halogen.
| Qty | Low | High |
|---|---|---|
| 1+ | $46.45 | $46.45 |
| 10+ | $39.48 | $39.48 |
| 150+ | $32.62 | $32.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
80 positions loaded in 2 rows.
3A per contact.
Through hole, right angle.
Yes, RoHS3 compliant (2011/65/EU).
