| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:22:23 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

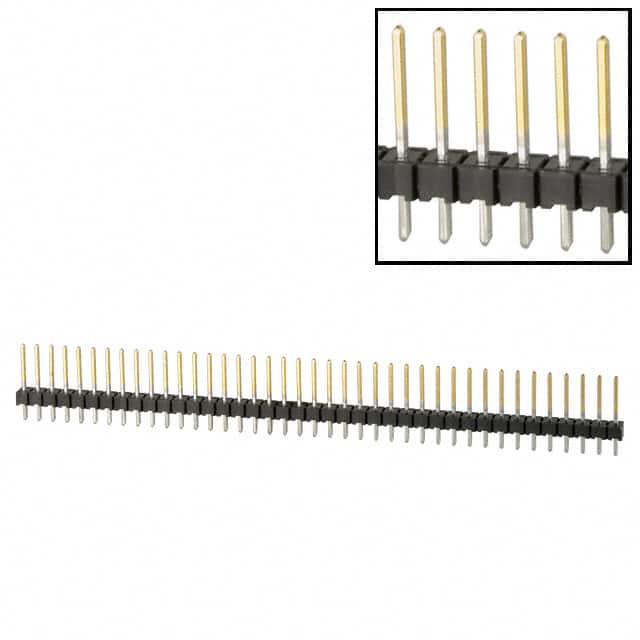

The TE Connectivity 9-146276-0 is a 40-position single row, unshrouded breakaway header with male pins. It has a pitch of 2.54mm (0.100") and is designed for through-hole mounting with solder termination, making it suitable for board-to-board and cable-to-board applications.
The contacts are made of copper alloy with a square pin shape and a tin finish of 15µin (0.38µm) thickness. The overall contact length is 13.55mm, with a mating contact length of 8.08mm. The insulator is black Liquid Crystal Polymer (LCP) with a height of 2.29mm, providing a UL94 V-0 flammability rating.
Electrically, the header is rated for a continuous current of 3A and operates over a temperature range of -65°C to 105°C. The fastening type is push-pull, and the header is unshrouded. All 40 positions are loaded, and the connector is suitable for both board-to-board and cable interconnections.
The 9-146276-0 is listed as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). These compliance statuses are unverified from the source; please verify with the manufacturer for critical applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.69 | $10.69 |
| 10+ | $9.09 | $9.09 |
| 100+ | $7.72 | $7.72 |
| 500+ | $6.89 | $6.89 |
| 1,000+ | $6.57 | $6.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
2.54mm (0.100").
3A.
Through hole.
-65°C to 105°C.
Tin, 15µin (0.38µm) thickness.
Black Liquid Crystal Polymer (LCP), UL94 V-0 rated.
