| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,120 pcs
|
3120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
255 pcs
|
255 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| ELV | |
| Halogen Content | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Solder Process Capability | |
| Style | |
| Termination | |
| Termination Style |

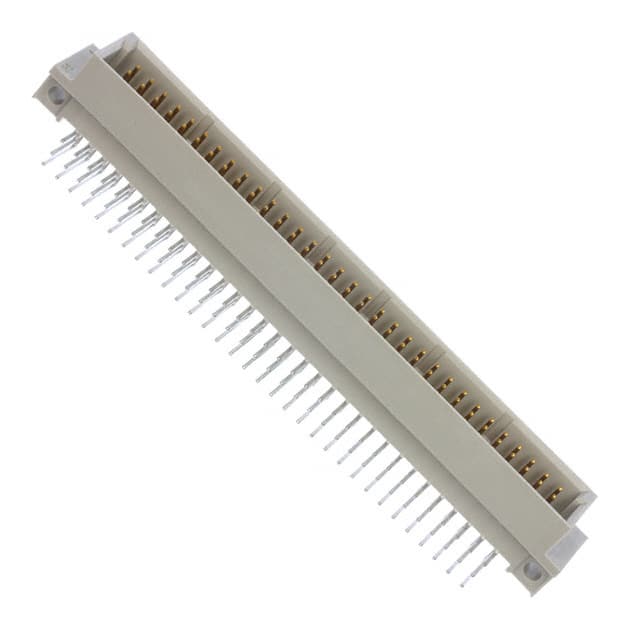

The TE Connectivity 9-1393644-1 is a DIN 41612 Type C plug connector with 96 male pins arranged in 3 rows. All positions are loaded, providing a full 96-pin configuration. The connector features a 2.54mm (0.100") pitch and is designed for through-hole mounting with a right-angle orientation, making it suitable for perpendicular connection to a PCB. Solder termination ensures reliable electrical connections. The contact finish is gold or gold-palladium, offering good corrosion resistance and durability. This connector is wave solder capable to 240°C. It is compliant with RoHS, REACH, ELV, and China RoHS directives, but is not low halogen. DIN 41612 connectors are widely used in backplane and rack-and-panel applications, providing a standardized interface for high-density signal connections. The Type C style defines a 3-row, 96-position configuration. The right-angle mounting allows for compact PCB layouts where space is limited.
96 positions, all loaded, in 3 rows.
2.54mm (0.100").
Through hole, right angle.
Gold or gold-palladium.
Yes, it is RoHS compliant.
Wave solder capable to 240°C.
It is a DIN 41612 Type C connector.
