| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

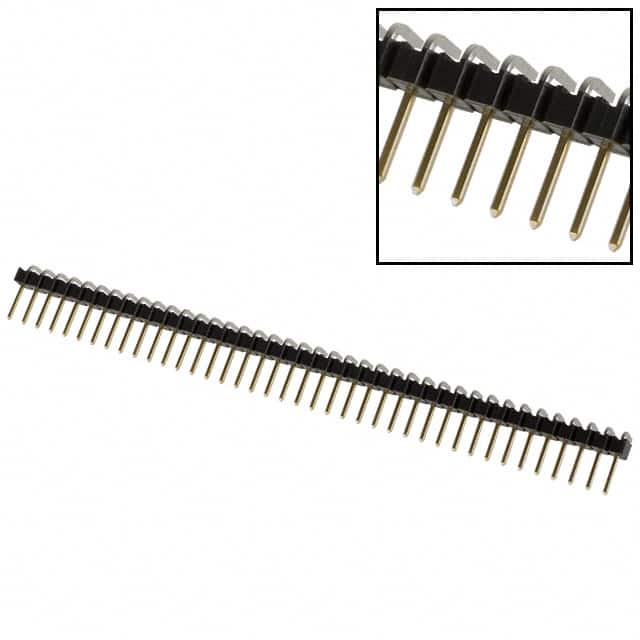

The TE Connectivity 9-102974-0 is a 40 position single row unshrouded header with male pin contacts arranged on a 2.54mm pitch. It features a right angle through hole mounting style with solder termination, making it suitable for board-to-board or cable connections. The header uses a push-pull fastening type and is constructed with a black thermoplastic insulator rated UL94 V-0 for flammability.
Contacts are made of copper alloy with a tin finish of 15.0µin thickness. The contact length is 8.08mm and the insulation height is 3.50mm. The component is rated for 3A current and operates over a temperature range of -65°C to 105°C. All 40 positions are loaded.
This unshrouded breakaway header is commonly used in applications requiring a reliable right angle connection for signal or low power distribution. The square contact shape and push-pull retention provide a secure mating interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.45 | $21.45 |
| 10+ | $18.23 | $18.23 |
| 150+ | $15.06 | $15.06 |
| 600+ | $13.66 | $13.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
It has 40 positions in a single row, all loaded.
The current rating is 3A.
It is a through hole, right angle mounting type with solder termination.
The operating temperature range is -65°C to 105°C.
The contacts have a tin finish with a thickness of 15.0µin (0.38µm).
