| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139 pcs
|
139 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Height - Seated (Max) | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Type | |
| Width |

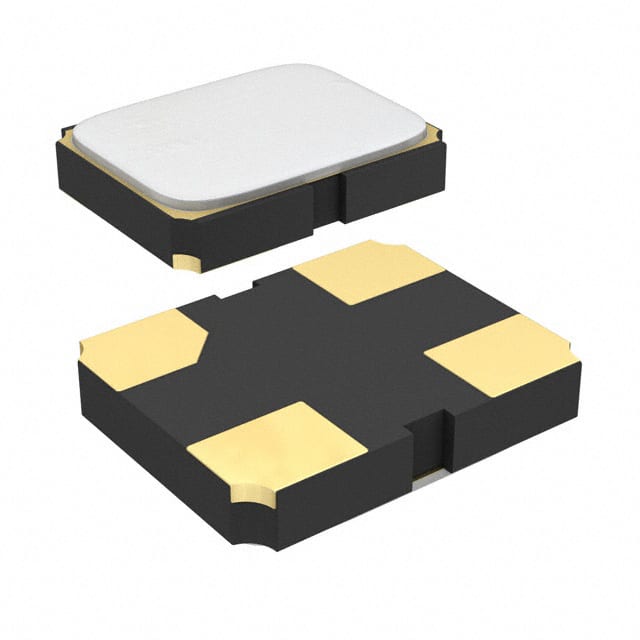

The 8Y37470007 is a 37.4 MHz Crystal manufactured by TXC Corporation. This surface-mount crystal offers a fundamental operating mode with a load capacitance of 8 pF. It exhibits a frequency tolerance of ±10 ppm and a frequency stability of ±10 ppm over the operating temperature range of -30°C to 85°C. The equivalent series resistance (ESR) is a maximum of 80 Ω.
This crystal is housed in a compact 4-SMD, No Lead package measuring 2.00 mm x 1.60 mm with a seated height of 0.55 mm. The package is suitable for automated assembly and is RoHS3 compliant.
Typical applications include timing reference circuits in microcontrollers, communication modules, and portable electronic devices requiring precise frequency control.
4-SMD, No Lead surface mount package.
-30°C to 85°C.
Yes, RoHS3 compliant.
37.4 MHz with 8 pF load capacitance.
Frequency tolerance is ±10 ppm and frequency stability is ±10 ppm.
Maximum ESR is 80 Ω.
Fundamental mode.
