| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Insulation Material | |
| Length | |
| Width |

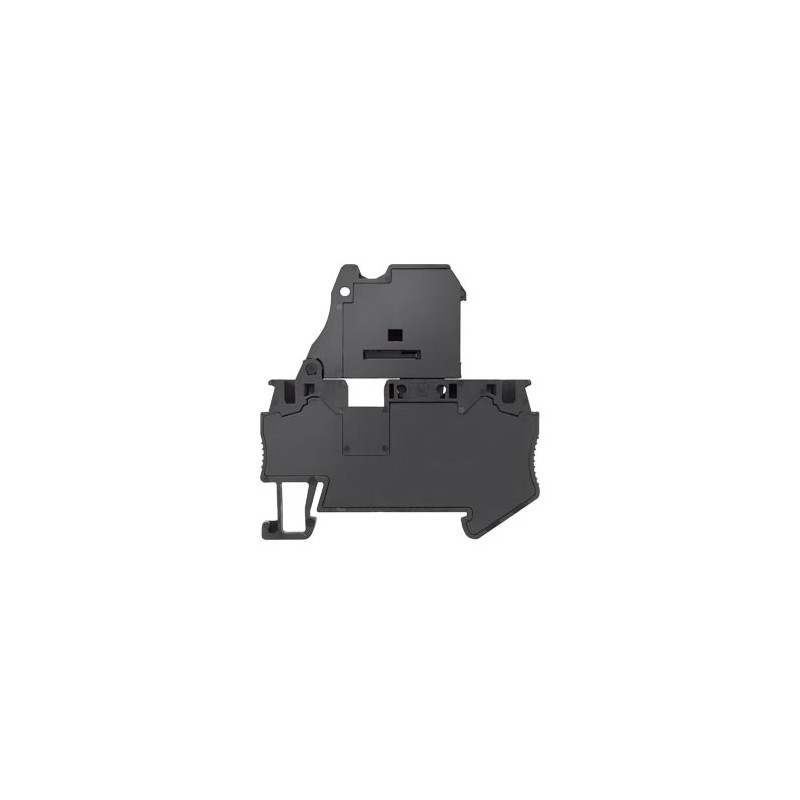

The Siemens 8WH20001GG08 is a fuse terminal designed for use with G fuse links of sizes 5x20 mm, 5x25 mm, and 5x30 mm. It incorporates 4 mm² spring-loaded connections for secure wire termination.
This terminal operates at a rated voltage of 250V and has a rated operational current of 6.3A. The terminal contact spacing is 6.2 mm. It is constructed with an insulating body made of 'Other' material and features a pluggable fuse holder design for glass fuses.
Mechanically, the fuse terminal has a width of 6.2mm, a height of 62.5mm, and a length of 61.5mm. It is designed for fastening onto a 35mm DIN rail. The terminal is black in color and comes in a package quantity of 50 units.
The product is compliant with RoHS3 and has an MSL rating of 1. It is suitable for applications requiring reliable fuse protection in low voltage switchgear and power distribution systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250V nominal.
6.3A nominal.
G fuse links 5x20, 5x25, and 5x30 mm.
50 units per package.
Spring-loaded terminal (top position).
V0 according to UL 94.
6.2 mm.
