The TXC 8W-13.000MBB-T is a standard crystal oscillator (XO) from the 8W series, delivering a nominal frequency of 13 MHz with CMOS output. It operates at a nominal supply voltage of 3.3V and draws a maximum current of 15mA (10mA per datasheet typical for the series). The frequency stability is ±50ppm over the operating temperature range of -10°C to +70°C.
This oscillator features an enable/disable function controlled by pin 1, allowing the output to be gated for power saving or testing. The output is CMOS with a 15pF load, and the device provides a 45% to 55% duty cycle with rise/fall times of 5ns maximum. Phase jitter is 1ps RMS (12kHz to 5MHz integration).

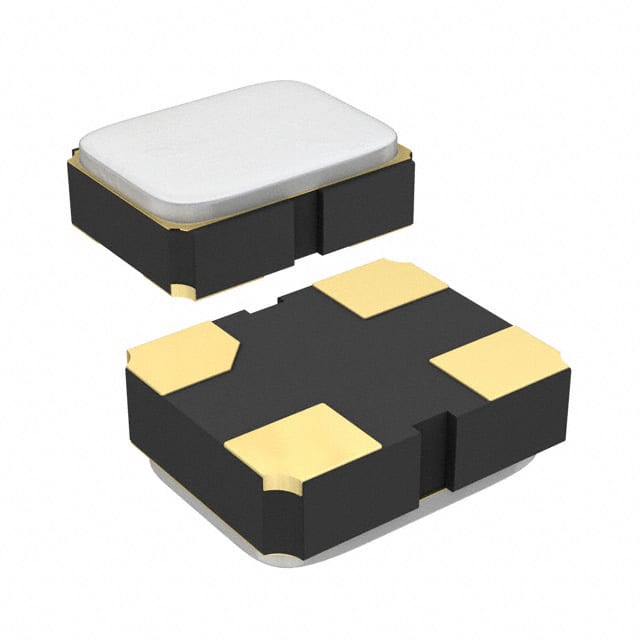

The 8W-13.000MBB-T is housed in a 4-SMD, no-lead ceramic package measuring 2.5mm x 2.0mm x 0.9mm, suitable for surface mount assembly. It is supplied in tape and reel packaging. The part is RoHS compliant and lead-free per the datasheet.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal frequency is 13 MHz.
The nominal supply voltage is 3.3V.
The operating temperature range is -10°C to +70°C.
The datasheet states the part is RoHS compliant and lead-free.
The package is 2.5mm x 2.0mm x 0.9mm, 4-SMD no-lead.
