| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| SVHC Present | |
| Switching Voltage | |
| Termination Style |

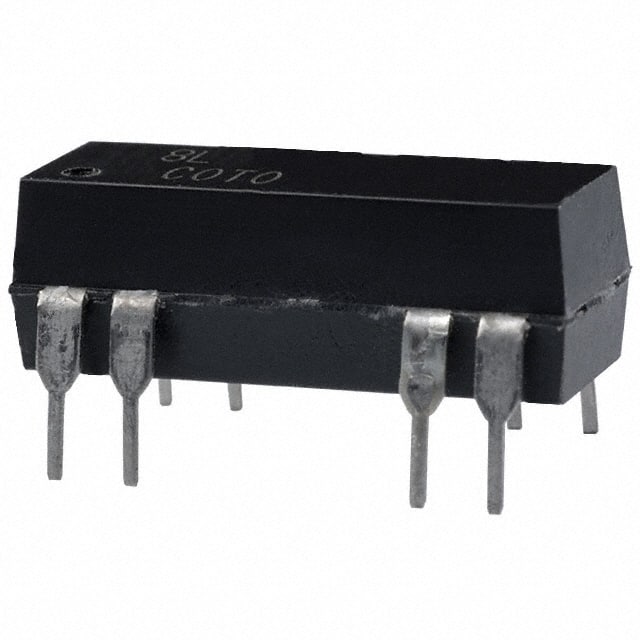

The Coto Technology 8L01-05-001 is part of the 8L Spartan Series, offering economy in an industry-standard 14-pin molded DIP package. This relay is a drop-in, low-cost replacement for competitive DIP packages, making it suitable for telecom, security, and other general-purpose applications.
This specific model features a SPST-NO (1 Form A) contact configuration, a 5VDC coil voltage, and a non-latching coil type. It is rated for a maximum switching current of 500mA and a switching voltage of up to 200VAC or 200VDC. The relay has an operate and release time of 0.5 ms, with a must-operate voltage of 3.8 VDC and a must-release voltage of 0.5 VDC.
Designed for through-hole mounting with PC pin termination, the 8L01-05-001 operates within an ambient temperature range of -20°C to 85°C. The relay features hermetically sealed contacts and a molded thermoset body. Optional electrostatic shields and coil suppression diodes are available for specific applications.
Compliance includes RoHS3 compliance and an MSL rating of 1. The Coto 8L Series relays are designed to cross to all competitive DIP packages, providing a reliable and cost-effective solution for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 8L01-05-001 relay features a SPST-NO (1 Form A) contact form.
The coil voltage for the 8L01-05-001 relay is 5VDC.
The maximum switching current for the 8L01-05-001 relay is 500 mA.
The operating temperature range for the 8L01-05-001 relay is -20°C to 85°C.
The 8L01-05-001 relay is designed for through-hole mounting.
