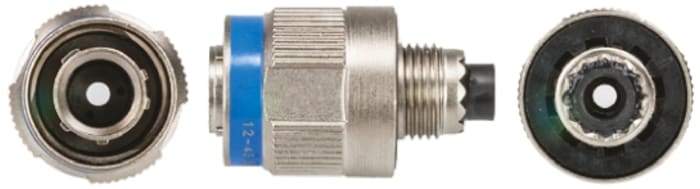

8D5E-09F01AN The Souriau Sunbank by Eaton 8D5E-09F01AN is a MIL Spec Circular Connector with a straight orientation and screw coupling. It features 1 male fibre optic contact.
Mfr Part #:

8D5E-09F01AN

Available from 1 distributors
Mfr Name: Souriau-Sunbank by Eaton
Souriau-Sunbank by Eaton
The Souriau Sunbank by Eaton 8D5E-09F01AN is a MIL Spec Circular Connector with a straight orientation and screw coupling. It features 1 male fibre optic contact.
✓ Total Stock: 5 pcs
$ Price Range: $1.00

8D5E-09F01AN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8D5E-09F01AN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Material
Country of Origin
Failure Rate
Housing Material
Mating Cycles
Number of Contacts
Orientation
Shell Plating
Shell Size
View Similar Products (0)

8D5E-09F01AN Description

Short technical summary and product information.

The Souriau Sunbank by Eaton 8D5E-09F01AN is a MIL Spec Circular Connector from the 8D series. This connector is designed for demanding applications with its durable aluminium housing and nickel plating.



Key specifications include a single male fibre optic contact, a shell size of 09, and an IP67 rating for environmental protection. It operates within a temperature range of -65°C to 125°C and features a secure screw coupling mating type.



Designed to conform to MIL-DTL-38999 standards, this connector offers high resistance to harsh environmental factors such as shock. It is suitable for use in military and civil aerospace, space and nuclear, marine, and industrial applications.



The connector is cable mounted and has a straight orientation, making it versatile for various system integrations.

8D5E-09F01AN Quick Information

Product Type: MIL Spec Circular Connector
Series: 8D
Canonical Name: Souriau Sunbank by Eaton 8D Series MIL Spec Circular Connector, Male, 1 Contact, Fibre Optic
Subcategory: Fibre Optic Connector

8D5E-09F01AN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8D5E-09F01AN Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

8D5E-09F01AN Features

  • MIL Spec Circular Connector, 1 contact.
  • Fibre optic contact material.
  • IP67 environmental protection rating.
  • Operating temperature range: -65°C to 125°C.
  • Conforms to MIL-DTL-38999 standards.

8D5E-09F01AN Applications

  • Suitable for aerospace applications.
  • Used in military ground personnel equipment.
  • Ideal for marine geophysical equipment.
  • Applicable in medical instrumentation.
  • Designed for industrial connector uses.

8D5E-09F01AN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the 8D5E-09F01AN connector?

The operating temperature range is from -65°C to 125°C.

What is the IP rating of the 8D5E-09F01AN connector?

The IP rating is IP67.

How many contacts does the 8D5E-09F01AN connector have?

The connector has 1 contact.

What is the mating type for this MIL Spec Circular Connector?

The mating type is Screw Coupling.

What military standard does the 8D5E-09F01AN conform to?

It conforms to MIL-DTL-38999.

What is the shell size of the 8D5E-09F01AN connector?

The shell size is 09.

What is the shock resistance of the 8D5E-09F01AN connector?

The shock resistance is 300g at 3 ms.
