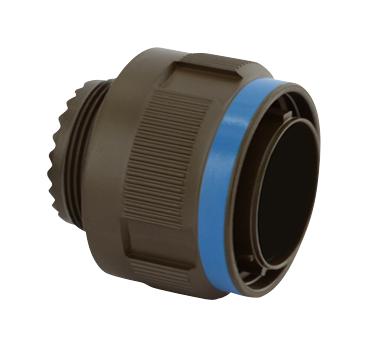

The 8D515W19PN is a 19-position circular connector plug from the 8D series by Souriau-Sunbank (Eaton). It features male pins with gold-plated crimp contacts, rated for 7.5A per contact. The connector is designed for free-hanging (in-line) mounting and uses a threaded coupling mechanism for secure mating.
The shell is made of aluminum with an olive drab cadmium finish, providing corrosion resistance and durability. The connector is shielded and offers IP67 ingress protection against dust and water. It operates over a wide temperature range of -65°C to +175°C, making it suitable for harsh environments.
Electrical specifications include a minimum insulation resistance of 5000 MΩ at 500 Vdc and low contact resistance (2 mΩ for #4 contacts, 3 mΩ for #8 contacts). The connector is designed to withstand high shock (300g) and vibration per MIL-DTL-38999, with a mechanical endurance of 500 mating cycles.
This connector is commonly used in power supply applications in harsh environments, including military, aerospace, and industrial automation. Contact retention forces are 200N minimum for #4 contacts and 111N minimum for #8 contacts.
The connector has 19 positions.
The general current rating is 7.5A per contact. For specific contact sizes, the #4 contact supports up to 80A typical and the #8 contact supports up to 45A typical.
The mounting type is Free Hanging (In-Line).
The connector operates from -65°C to +175°C for the olive drab cadmium finish (W, J, X, JVS plating).
The connector is rated IP67, meaning it is dust-tight and waterproof.
The shell is made of aluminum with an olive drab cadmium finish.
The minimum contact retention force is 200N for #4 contacts and 111N for #8 contacts.
