| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,157 pcs
|
7157 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Failure Rate | |
| Interface | |
| Mounting Type | |
| Supplier Device Package | |
| Voltage |
The 89HPES12T3G2ZBBCGI is a specialized interface integrated circuit from Renesas designed for high-performance PCI Express switch interfacing applications. It features 12 lanes of PCI Express connectivity, making it suitable for complex system designs requiring multiple high-speed data paths.

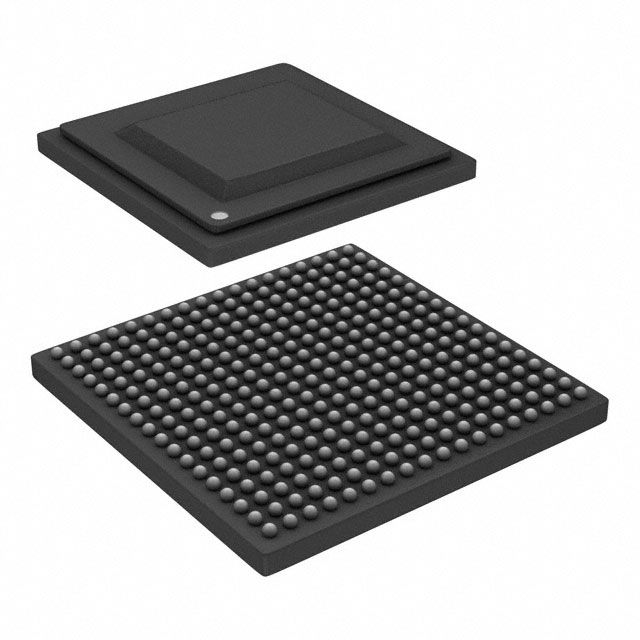

The device operates at a supply voltage of 3.3V and is housed in a 324-ball CABGA (19x19mm) package optimized for dense PCB layouts. It is part of the PRECISE series and supports surface mount mounting for automated assembly.
This IC is intended for switch interfacing applications in enterprise and communications equipment where reliable PCIe switching is required. The device is now considered obsolete and not recommended for new designs.
The supply voltage is 3.3V.
It comes in a 324-CABGA (19x19mm) package.
No, it is RoHS non-compliant according to the manufacturer page.
The MSL is Level 4, requiring bake before reflow after 72 hours exposure.
It supports the PCI Express interface standard.
It has 12 lanes.
It is surface mount.
