| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
336 pcs
|
336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

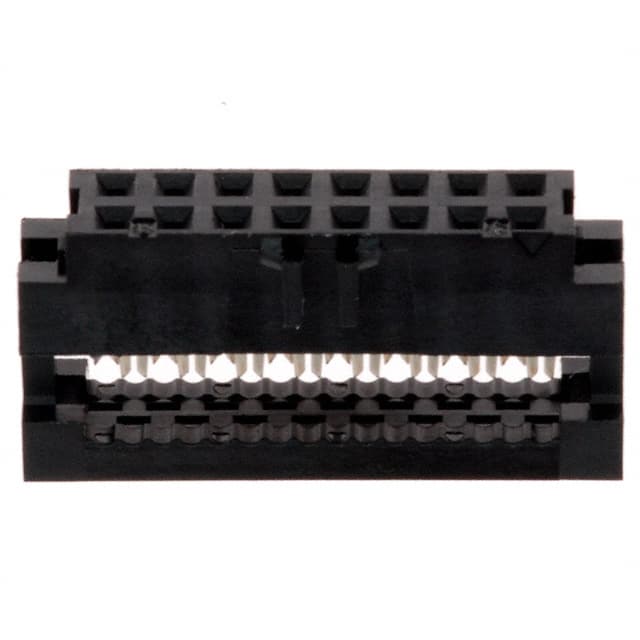

The 89947-716LF is a 16 position rectangular receptacle connector manufactured by Amphenol ICC. It features a 2.00mm (0.079") pitch with 2 rows and 2.00mm row spacing, designed for IDC termination to 28 AWG ribbon cable. The contacts are female sockets with a gold finish of 30.0µin (0.76µm) for reliable low-resistance connections. The connector uses a free hanging (in-line) mounting style and includes a friction lock for secure mating. Additional features include a polarizing key to prevent misalignment and a feed through design for daisy chaining. The housing is black. It is claimed RoHS3 compliant with MSL 1 and REACH unaffected. This connector is suitable for internal wire-to-board or cable-to-cable interconnects in data and signal applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.17 | $2.17 |
| 10+ | $1.85 | $1.85 |
| 28+ | $1.72 | $1.72 |
| 56+ | $1.64 | $1.64 |
| 112+ | $1.56 | $1.56 |
| 252+ | $1.47 | $1.47 |
| 504+ | $1.40 | $1.40 |
| 1,008+ | $1.33 | $1.33 |
| 2,520+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions arranged in 2 rows.
2.00mm (0.079 inches).
Free hanging (in-line).
IDC (Insulation Displacement Connection) for 28 AWG ribbon cable.
Gold, 30.0µin (0.76µm).
Yes, friction lock.
Black.
