| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Gender | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouded/Unshrouded | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Type |

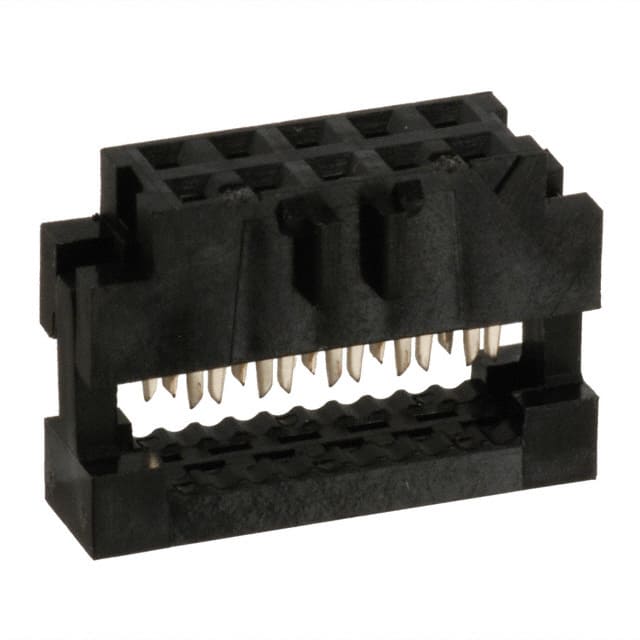

The Amphenol ICC 89947-710LF is a 10 position IDC receptacle designed for wire-to-board applications. It features a 2 row configuration with a 2.00mm pitch and 2.00mm row spacing, accepting 28 AWG ribbon cable via IDC termination.
This shrouded receptacle has female socket contacts with 30µin gold plating over phosphor bronze, ensuring reliable signal integrity. The black thermoplastic housing includes a friction lock fastening system and a polarizing key for secure mating. Rated for 1A per contact and 650V, it operates over a -40°C to 105°C temperature range.
The free hanging (in-line) mounting style simplifies cable assembly. The 89947 series is RoHS and REACH compliant, suitable for a variety of internal wiring applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.18 | $1.18 |
| 10+ | $1.01 | $1.01 |
| 40+ | $0.91 | $0.91 |
| 80+ | $0.87 | $0.87 |
| 120+ | $0.84 | $0.84 |
| 280+ | $0.80 | $0.80 |
| 520+ | $0.76 | $0.76 |
| 1,000+ | $0.73 | $0.73 |
| 2,520+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 89947-710LF has 10 positions arranged in 2 rows.
The pitch is 2.00mm (0.079") with a row spacing of 2.00mm.
The current rating is 1A per contact and the voltage rating is 650V.
The mounting type is Free Hanging (In-Line) with IDC termination.
It accepts 28 AWG ribbon cable.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant and REACH unaffected.
