| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

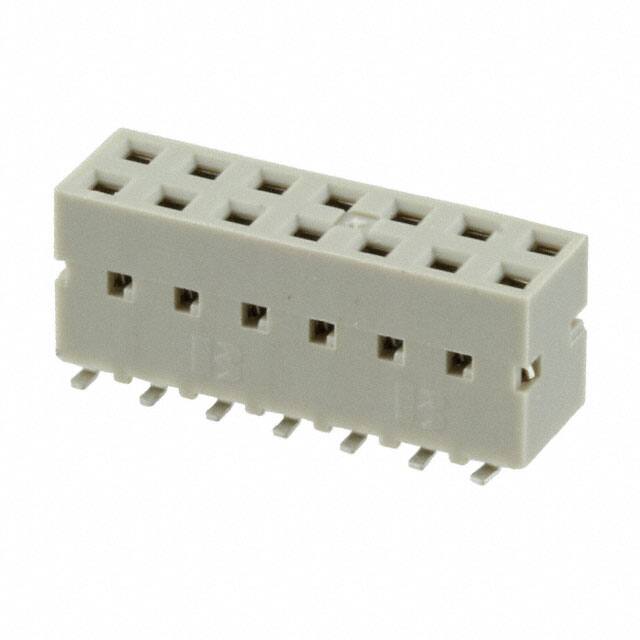

The Amphenol ICC 89898-307ALF is a 14 position surface mount receptacle from the Dubox 678 series. It features a 2.54mm pitch and 2 rows of female socket contacts with tin contact finish. The connector is designed for board to board applications with a mated stacking height of 10.81mm.
The receptacle supports bottom or top entry and uses a push-pull fastening mechanism. The gray insulation has a height of 6.99mm and is rated UL94 V-0 for flammability. The connector is pick and place compatible for automated assembly.
All 14 positions are loaded, and the termination style is solder. The contact finish thickness is 30.0µin (0.76µm). The row spacing is also 2.54mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
| 10+ | $2.04 | $2.04 |
| 100+ | $1.73 | $1.73 |
| 650+ | $1.52 | $1.52 |
| 1,300+ | $1.45 | $1.45 |
| 1,950+ | $1.41 | $1.41 |
| 3,250+ | $1.36 | $1.36 |
| 4,550+ | $1.32 | $1.32 |
| 6,500+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions, all loaded.
2.54mm (0.100").
Surface mount (SMD).
Tin, 30.0µin (0.76µm) thickness.
10.81mm.
UL94 V-0.
Yes, it features pick and place capability.
