| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

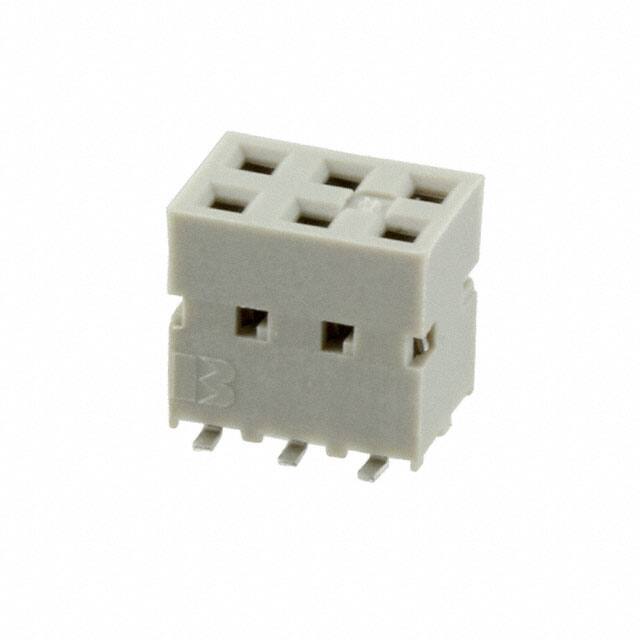

The Amphenol ICC 89898-303ALF is a 6-position board-to-board receptacle with female socket contacts on a 2.54mm pitch. It features two rows with all positions loaded, and a row spacing of 2.54mm. The connector uses a push-pull fastening mechanism and is designed for surface mount soldering termination.
This receptacle accepts bottom or top entry mating, with a mated stacking height of 10.81mm. The insulation is gray with a height of 6.99mm, and the contact finish is tin with a thickness of 30.0µin (0.76µm). The housing material has a UL94 V-0 flammability rating.
The part includes a pick and place feature, making it suitable for automated assembly processes. It comes from the Amphenol Dubox series, part of the 89898 series header/receptacle family.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 10+ | $0.94 | $0.94 |
| 100+ | $0.80 | $0.80 |
| 650+ | $0.69 | $0.69 |
| 1,300+ | $0.65 | $0.65 |
| 1,950+ | $0.63 | $0.63 |
| 3,250+ | $0.61 | $0.61 |
| 4,550+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 6 positions arranged in 2 rows, all positions loaded.
Surface mount with solder termination.
Push-pull.
Gray.
UL94 V-0.
Yes, it features pick and place capability.
