| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Pin Diameter | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Number | |
| Current Rating (Maximum @ @ 30 °C Temperature Rise) | |
| Current Rating (Maximum @ Derated) | |
| Flange Diameter | |
| Lead Style | |
| Length | |
| Mechanical Life | |
| Mounting Feature | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Operating Temperature Range | |
| Pin Hole Diameter | |
| Product Family | |
| Shell Finish | |
| Shell Material | |
| Shock | |
| Socket Depth | |
| Tail Type | |
| Termination | |
| Termination Style | |
| Vibration |

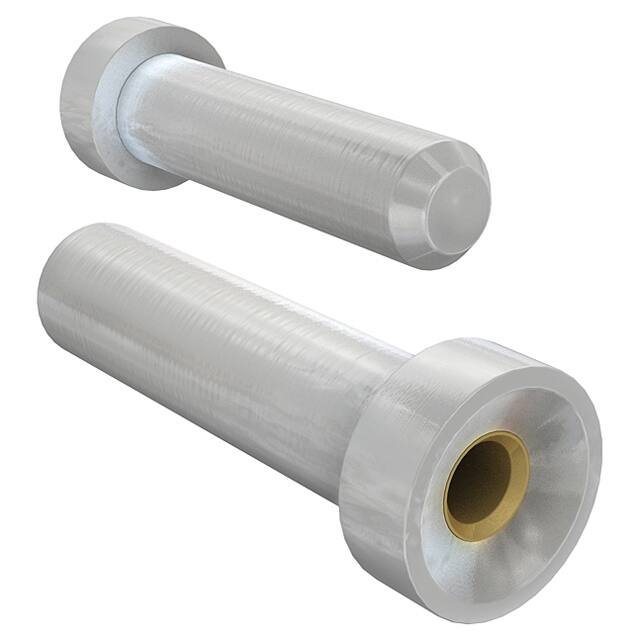

The Mill-Max 8975-0-15-01-21-27-10-0 is a pin receptacle from the 8975 series, designed to accept pins with diameters ranging from 0.015" to 0.022" (0.38mm to 0.56mm). This no-tail receptacle features a solder mount termination and is intended for mounting in a 0.036" (0.91mm) minimum mounting hole, though the manufacturer specifies a 0.038" (0.965mm) mounting hole.
The contact is made of beryllium copper alloy 172, HT, with a 30 µ" gold finish over nickel, ensuring reliable electrical performance and corrosion resistance. The shell is constructed from brass alloy 360, 1/2 hard, with a 10 µ" gold over nickel finish. The receptacle has a socket depth of 0.150" (3.81mm) and an overall length of 0.250" (6.35mm).
Electrically, the receptacle is rated for a maximum current of 6A at 30°C temperature rise, with a derated current of 4.8A. It operates over a temperature range of -55°C to +125°C and has a mechanical life of 1,000 cycles minimum. The part is RoHS compliant and is available in bulk packaging, with tape and reel options for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
| 10+ | $0.26 | $0.26 |
| 25+ | $0.24 | $0.24 |
| 50+ | $0.23 | $0.23 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.20 | $0.20 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.19 | $0.19 |
| 2,500+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 6A at 30°C temperature rise, with a derated current of 4.8A.
It accepts pins with diameters from 0.015" to 0.022" (0.38mm to 0.56mm).
The operating temperature range is -55°C to +125°C.
The datasheet specifies a minimum mounting hole of 0.036" (0.91mm), while the manufacturer page lists 0.038" (0.965mm). Verify the correct dimension for your application.
The mechanical life is a minimum of 1,000 cycles.
The contact is beryllium copper with a 30 µ" gold finish over nickel.
