| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Shielding | |
| Specifications | |
| Termination | |
| Voltage |

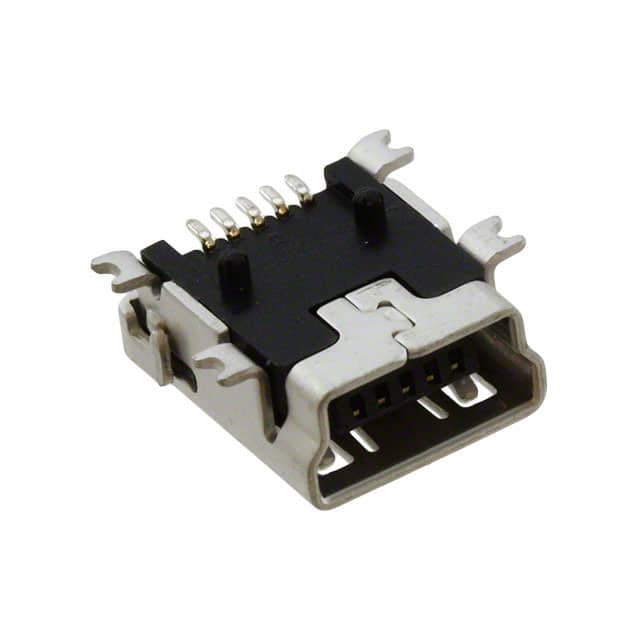

The Mill-Max 897-43-005-00-100001 is a USB 2.0 Mini B receptacle connector designed for surface mount, right angle mounting. It features 5 contacts and a single port, with a horizontal orientation. The connector is shielded for EMI protection and includes board guide and solder retention features for reliable assembly.
Electrical ratings include a current rating of 1 A and a voltage rating of 30 VAC, suitable for standard USB 2.0 applications. The connector is rated for 5000 mating cycles, indicating robust durability for repeated use.
The termination method is solder, making it compatible with standard SMD assembly processes. The part is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.98 | $1.98 |
| 10+ | $1.68 | $1.68 |
| 25+ | $1.58 | $1.58 |
| 50+ | $1.50 | $1.50 |
| 100+ | $1.43 | $1.43 |
| 250+ | $1.34 | $1.34 |
| 700+ | $1.25 | $1.25 |
| 1,400+ | $1.19 | $1.19 |
| 2,100+ | $1.15 | $1.15 |
| 3,500+ | $1.11 | $1.11 |
| 4,900+ | $1.09 | $1.09 |
| 7,000+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB - mini B receptacle.
5 contacts.
Surface mount, right angle, horizontal.
1 A.
30 VAC.
Yes, shielded.
5000 cycles.
