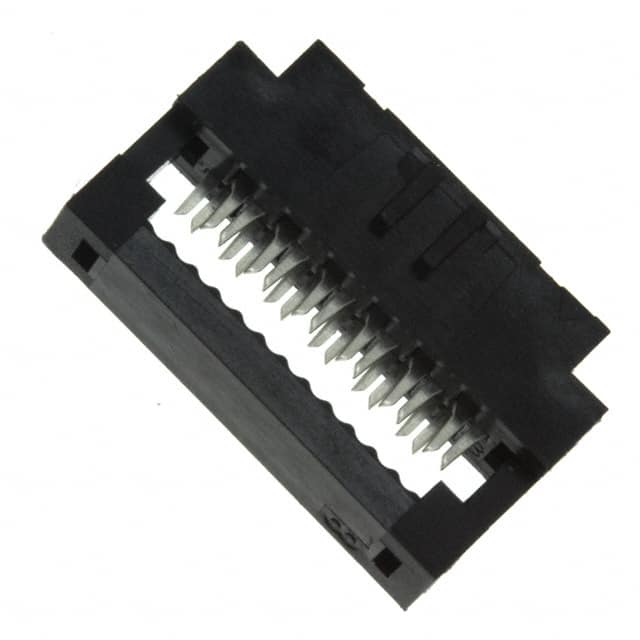

89361-712LF 12-position, 2-row IDC receptacle with 2.00mm pitch and gold contacts. Designed for 28 AWG ribbon cable with friction lock polarization.
Mfr Part #:

89361-712LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
12-position, 2-row IDC receptacle with 2.00mm pitch and gold contacts. Designed for 28 AWG ribbon cable with friction lock polarization.
✓ Total Stock: 213 pcs
$ Price Range: $1.21 - $2.11

89361-712LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
213 pcs
On Request
213 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

89361-712LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

89361-712LF Description

Short technical summary and product information.

The 89361-712LF is a 12-position, 2-row rectangular receptacle connector from Amphenol ICC. It features a 2.00mm pitch and row spacing, with gold-plated female socket contacts for reliable signal integrity.



This connector uses IDC (Insulation Displacement Connection) termination for 28 AWG ribbon cable, providing a quick and reliable wire-to-board connection. It is designed for free hanging (in-line) mounting, allowing flexible cable assembly.



The connector includes a friction lock fastening type for secure mating, and features feed-through and polarizing key for correct orientation. The black housing is suitable for general-purpose applications.



RoHS3 compliant (unverified) and MSL 1. Typical applications include internal wiring harnesses, computer peripherals, and industrial equipment where compact 2.00mm pitch connectors are required.

89361-712LF Quick Information

Product Type: Rectangular Connector - Receptacle
Canonical Name: Receptacle, 12 Position, 2 Row, IDC, 28 AWG, Ribbon Cable, Friction Lock
Subcategory: IDC Connector

89361-712LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

89361-712LF Estimated Pricing

Qty Low High
1+ $2.11 $2.11
10+ $1.79 $1.79
35+ $1.64 $1.64
70+ $1.56 $1.56
105+ $1.51 $1.51
280+ $1.41 $1.41
525+ $1.35 $1.35
1,015+ $1.29 $1.29
2,520+ $1.21 $1.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

89361-712LF Features

  • 12-position, 2-row IDC receptacle connector.
  • 2.00mm pitch with gold-plated contacts.
  • Designed for 28 AWG ribbon cable.
  • Friction lock for secure mating.
  • Feed-through and polarizing key features.

89361-712LF Applications

  • Ideal for internal cable harness assemblies.
  • Used in computer and peripheral connections.
  • Suitable for industrial control systems.
  • Common in data communication equipment.

89361-712LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 89361-712LF have?

The connector has 12 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 2.00mm (0.079").

What mounting type is used?

Free hanging (in-line) mounting.

What termination style does it use?

IDC (Insulation Displacement Connection) termination.

What wire gauge is compatible?

28 AWG ribbon cable.

What contact finish is applied?

Gold with 8µin (0.203µm) thickness.

Does it have a locking mechanism?

Yes, it has a friction lock fastening type.
