| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
242 pcs
|
242 pcs | On Request | 1 | On Request | On Request | 1611+ | On Request | On Request | |
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

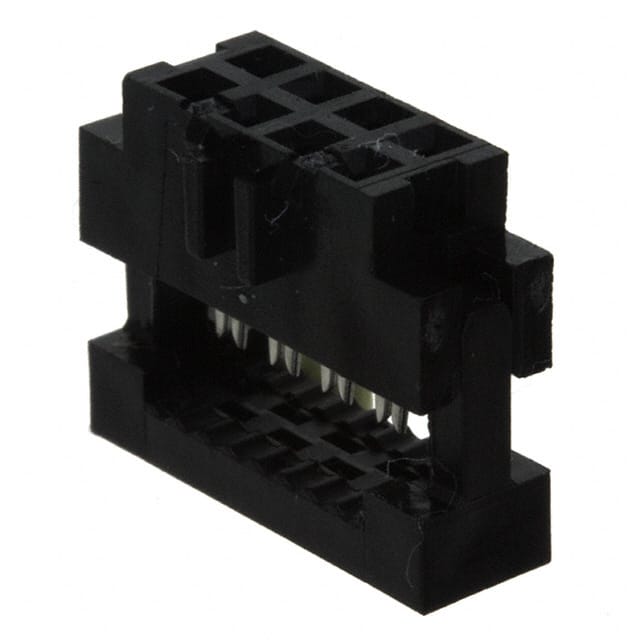

The Amphenol ICC 89361-708LF is an 8-position rectangular connector receptacle designed for IDC termination to 28 AWG ribbon cable. It features a 2.00mm (0.079") pitch and 2 rows with a row spacing of 2.00mm. The connector uses female socket contacts with a gold finish of 8.00µin (0.203µm) for reliable conductivity. mechanical design includes a friction lock fastening type for secure mating, and the connector is free hanging (in-line) mounted. Additional features include feed through and a polarizing key for proper orientation. The housing is black. This connector is suitable for internal cable-to-board or cable-to-cable interconnections requiring a compact, low-profile IDC solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.96 | $1.96 |
| 10+ | $1.67 | $1.67 |
| 46+ | $1.50 | $1.50 |
| 92+ | $1.43 | $1.43 |
| 138+ | $1.39 | $1.39 |
| 276+ | $1.32 | $1.32 |
| 506+ | $1.26 | $1.26 |
| 1,012+ | $1.20 | $1.20 |
| 2,530+ | $1.13 | $1.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle with female socket contacts.
8 positions in 2 rows.
Pitch is 2.00mm (0.079") and row spacing is also 2.00mm (0.079").
IDC (Insulation Displacement Connector) for 28 AWG ribbon cable.
Free hanging (in-line).
Gold with 8.00µin (0.203µm) thickness.
Friction lock fastening, with feed through and polarizing key features.
