Mfr Part #:

89126-0103

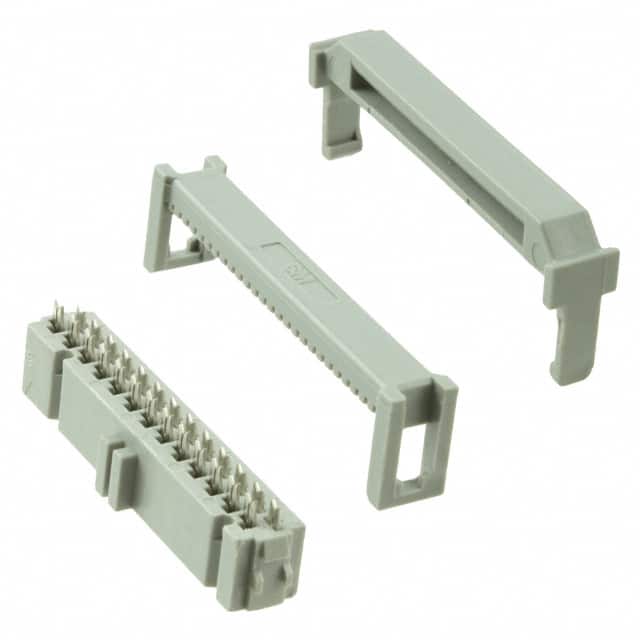

26-position IDC receptacle connector from 3M Electronic Solutions. Features gold contacts, 2.54mm pitch, and free hanging mounting for 26-28 AWG ribbon cable.

✓ Total Stock: 285 pcs

$ Price Range: $1.34 - $2.22

89126-0103 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	285 pcs On Request	285 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

89126-0103 Description

Short technical summary and product information.

The 89126-0103 is a 26-position IDC (Insulation Displacement Connector) receptacle from 3M Electronic Solutions. It is designed for use with 26-28 AWG ribbon cable and features a free hanging (in-line) mounting style. The connector has a 2.54mm (0.100") pitch and row spacing, with two rows of female socket contacts. Contacts are gold plated with a thickness of 30.0µin (0.76µm).

This connector includes features such as feed through, polarizing key, and strain relief for reliable cable management. The housing is gray in color. It is suitable for applications requiring a compact, reliable interconnection for ribbon cable assemblies.

The connector uses IDC termination, which allows for quick and efficient cable assembly without the need for stripping or soldering. It is commonly used in computer peripherals, industrial control systems, and other electronic equipment where multiple signal connections are needed.

89126-0103 Quick Information

Product Type: Rectangular Connector - IDC Receptacle

Series: 891

Canonical Name: 26 Position IDC Receptacle Connector, 2.54mm Pitch, Free Hanging, Gold Contacts

Subcategory: IDC Receptacle

89126-0103 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

89126-0103 Estimated Pricing

Qty	Low	High
1+	$2.22	$2.22
10+	$1.98	$1.98
25+	$1.77	$1.77
100+	$1.69	$1.69
250+	$1.58	$1.58
500+	$1.51	$1.51
1,000+	$1.44	$1.44
3,000+	$1.34	$1.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

89126-0103 Features

26-position IDC receptacle connector.
Gold plated contacts for reliable connections.
2.54mm pitch and row spacing.
Free hanging (in-line) mounting style.
Includes feed through, polarizing key, and strain relief.

89126-0103 Applications

Used for ribbon cable interconnections in electronic equipment.
Ideal for computer peripheral and industrial control systems.
Suitable for signal-level data transmission applications.

89126-0103 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 89126-0103 have?

26 positions.

What is the pitch of this connector?

2.54mm (0.100").

What is the mounting type?

Free hanging (in-line).

What type of termination does it use?

IDC (Insulation Displacement Connector).

What wire gauge is compatible?

26-28 AWG.

What is the contact finish?

Gold, 30.0µin (0.76µm).

What features does it include?

Feed through, polarizing key, and strain relief.

Category	Free Hanging, Panel Mount
Manufacturer Name	3M Electronic Solutions
Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Military Grade	Yes
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Termination Style	IDC
Wire Gauge	26-28 AWG
Wire Type	Ribbon Cable
