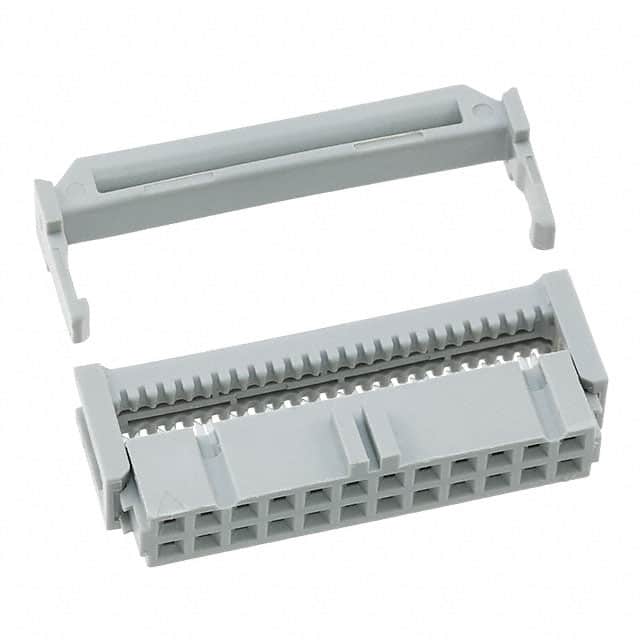

The 3M 89124-0103 is a 24-position IDC ribbon cable socket from the 891 series. It features a 2.54mm pitch and 2 rows with 0.100" row spacing. The connector uses IDC termination for 26-28 AWG stranded ribbon cable and is designed for free hanging (in-line) mounting.
The contacts are made of phosphor bronze with 30.0µin gold plating over 50µin nickel underplate. The housing is glass filled polyester (PBT) with a UL94 V-0 flammability rating and gray color. The connector includes feed through, polarizing key, and strain relief features.
Electrical ratings include insulation resistance greater than 1 x 10^9 Ω at 500 V DC, withstanding voltage of 1000 V RMS at sea level, and current ratings up to 3.50 A per line depending on wire gauge and number of energized lines.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.38 | $3.38 |
| 10+ | $2.88 | $2.88 |
| 25+ | $2.70 | $2.70 |
| 50+ | $2.57 | $2.57 |
| 100+ | $2.44 | $2.44 |
| 250+ | $2.29 | $2.29 |
| 500+ | $2.18 | $2.18 |
| 1,000+ | $2.08 | $2.08 |
| 2,500+ | $1.95 | $1.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 24 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 0.100" (2.54mm).
It accommodates 26-28 AWG stranded ribbon cable.
Current rating depends on wire gauge and number of energized lines: 3.00 A (28 AWG, 1 line), 1.25 A (28 AWG, all lines), 3.50 A (26 AWG, 1 line), 1.50 A (26 AWG, all lines).
The mounting type is free hanging (in-line).
