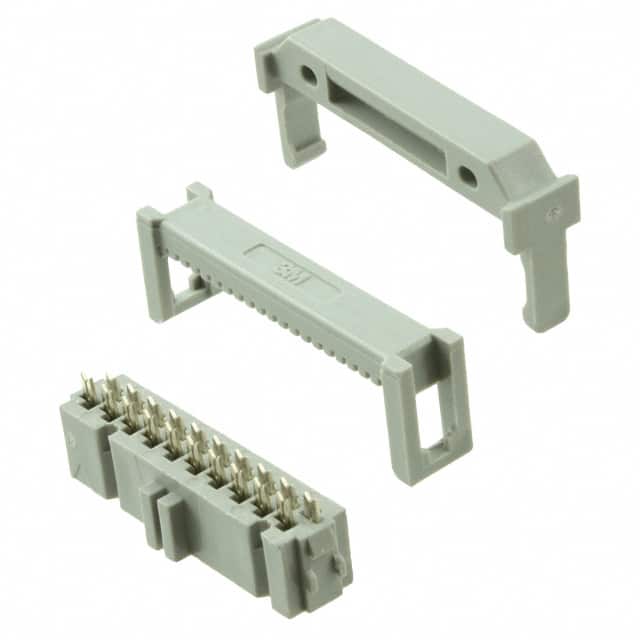

The 3M 89120-0103 is a 20-position IDC ribbon cable socket from the 891 series. It features a free hanging (in-line) mounting style with IDC termination, designed for use with 26-28 AWG ribbon cable. The connector has two rows with 0.100" (2.54mm) pitch and row spacing, and accepts female socket contacts with gold plating (30.0µin) over nickel underplate.
Electrical performance includes current ratings up to 3.50A for a single line with 26 AWG wire (derated per EIA-364-070 Method 2), insulation resistance greater than 1 GΩ at 500 V DC, and withstanding voltage of 1,000 V RMS at sea level. The connector includes features such as feed through design, polarizing key, and optional strain relief.
The housing is molded from glass filled polyester (PBT) with UL94 V-0 flammability rating, and the contacts are phosphor bronze. The connector is gray in color and is RoHS3 compliant (unverified). It is recognized under UL file E68080.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
| 10+ | $2.03 | $2.03 |
| 25+ | $1.90 | $1.90 |
| 50+ | $1.81 | $1.81 |
| 100+ | $1.72 | $1.72 |
| 250+ | $1.61 | $1.61 |
| 500+ | $1.54 | $1.54 |
| 1,000+ | $1.46 | $1.46 |
| 2,500+ | $1.37 | $1.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 20 positions arranged in 2 rows.
Both pitch and row spacing are 0.100" (2.54mm).
The connector accommodates 26-28 AWG stranded ribbon cable.
The current rating is 3.00 A for a single line with 28 AWG wire (derated per EIA-364-070 Method 2).
The withstanding voltage is 1,000 V RMS at sea level.
This connector is free hanging (in-line) with IDC termination.
