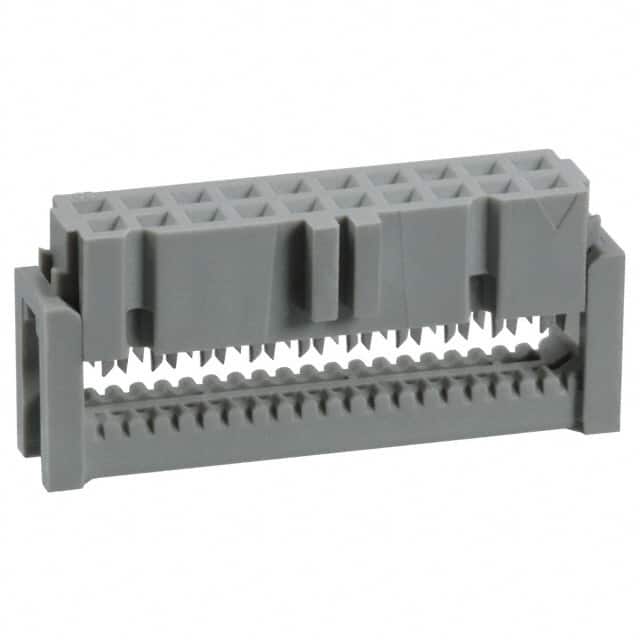

The 3M 89120-0101 is a 20 position IDC receptacle connector designed for ribbon cable applications. It features a free hanging (in-line) mounting style and uses insulation displacement termination (IDC) for quick and reliable connections.
This connector has 2 rows with a 2.54mm pitch and row spacing. The contacts are female sockets with gold plating (30µin thickness) for reliable conductivity. It accommodates 26 to 28 AWG stranded wire and is rated for a current of 1.25A continuous (with higher per-line ratings available under specific conditions). The withstanding voltage is 1000V RMS, and insulation resistance is greater than 1 GΩ at 500V DC.
The housing is made of glass-filled polyester (PBT) with a UL94 V-0 flammability rating and is gray in color. Features include feed through and polarizing key for proper alignment. The operating temperature range is -55°C to 105°C.
This connector is RoHS3 compliant and REACH unaffected, though compliance data should be verified against official 3M documentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.40 | $1.40 |
| 10+ | $1.19 | $1.19 |
| 25+ | $1.12 | $1.12 |
| 50+ | $1.06 | $1.06 |
| 100+ | $1.01 | $1.01 |
| 250+ | $0.95 | $0.95 |
| 500+ | $0.90 | $0.90 |
| 1,000+ | $0.86 | $0.86 |
| 2,500+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
The continuous current rating is 1.25A. Under specific conditions (26 AWG, 1 line, 20% derated), the maximum current is 3.5A.
1000V RMS at sea level.
Free Hanging (In-Line).
26-28 AWG stranded wire.
-55°C to 105°C.
