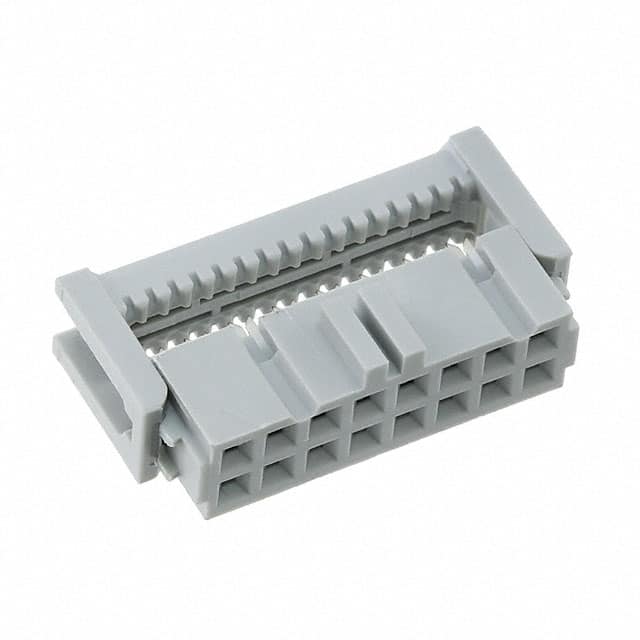

The 3M 89116-0101 is a 16-position receptacle from the 891 series of IDC ribbon cable sockets. It features a 2.54mm pitch and 2 rows, with female socket contacts made of phosphor bronze with gold plating (30 µin wiping area) over nickel underplating. The housing is glass-filled polyester (PBT) with a UL94 V-0 flammability rating and gray color. The connector is designed for free hanging (in-line) mounting and uses IDC termination for 26-28 AWG stranded ribbon cable.
Electrical ratings include a current rating of up to 3.0A on a single line with 28 AWG wire (derated to 1.25A for all lines), a withstanding voltage of 1000V RMS at sea level, and insulation resistance greater than 1×10^9 Ω at 500V DC. The operating temperature range is -55°C to 105°C. The connector is lead-free and RoHS compliant (unverified).
The 89116-0101 includes feed-through and polarizing key features. Packaging is bulk with a standard package quantity of 500. Dimensions: length 24.9mm, height 10.7mm, depth 6.1mm. The weight is listed as 4 lb but likely an error (probably 4g).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.62 | $1.62 |
| 10+ | $1.38 | $1.38 |
| 25+ | $1.29 | $1.29 |
| 50+ | $1.23 | $1.23 |
| 100+ | $1.17 | $1.17 |
| 250+ | $1.10 | $1.10 |
| 500+ | $1.05 | $1.05 |
| 1,000+ | $1.00 | $1.00 |
| 2,500+ | $0.93 | $0.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54 mm (0.100 inches).
Up to 3.0A on a single line with 28 AWG wire, derated to 1.25A for all lines. For 26 AWG, up to 3.5A on a single line.
Free hanging (in-line) mounting.
Minimum 1000V RMS at sea level.
26 to 28 AWG stranded ribbon cable.
-55°C to 105°C.
