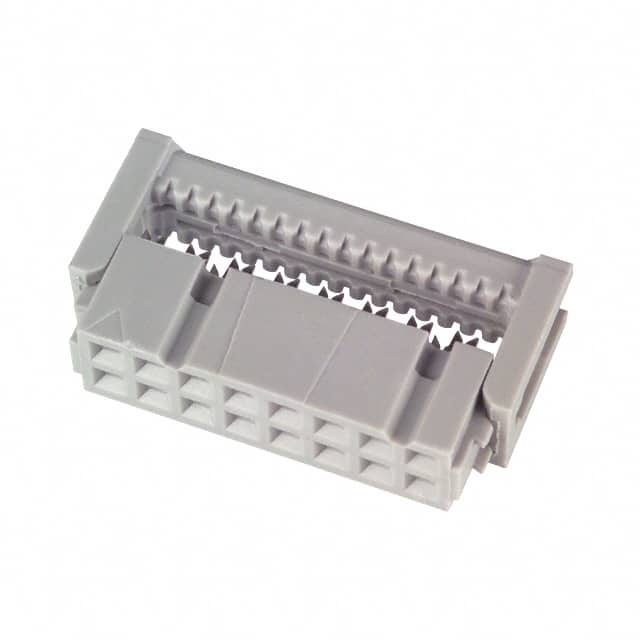

The 3M 89116-0001 is a 16 position, 2 row IDC (Insulation Displacement Connector) socket receptacle designed for use with 0.050 inch pitch ribbon cable. It features a 2.54mm pitch and 2.54mm row spacing. The connector uses female socket contacts made of phosphor bronze with a gold plating of 30.0 microinches on the wiping area over a 50 microinch nickel underplating.
The connector is rated for a typical current of 1A per contact with a maximum of 1.25A per contact under derated conditions. It is designed for a dielectric withstanding voltage of 1000 V RMS at sea level and has a minimum insulation resistance of 1 x 10^9 ohms at 500 V DC. The operating temperature range is -55°C to 105°C.
The housing is made of glass filled polyester (PBT) with a UL94V-0 flammability rating, colored gray. The connector is designed for free hanging (in-line) mounting and accepts 26-28 AWG stranded wire. The part is bulk packaged with a standard package quantity of 500. It is lead-free and intended to be RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.59 | $1.59 |
| 10+ | $1.35 | $1.35 |
| 25+ | $1.27 | $1.27 |
| 50+ | $1.21 | $1.21 |
| 100+ | $1.15 | $1.15 |
| 250+ | $1.08 | $1.08 |
| 500+ | $1.03 | $1.03 |
| 1,000+ | $0.98 | $0.98 |
| 2,500+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 16 positions arranged in 2 rows.
The pitch is 2.54 mm (0.100 inches) with a row spacing of 2.54 mm.
The typical current rating is 1 A per contact, with a maximum of 1.25 A per contact under derated conditions.
It is designed for free hanging (in-line) mounting using IDC termination.
