| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Style | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| UL | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage | |
| current_rating (Maximum @ 26 AWG, all lines powered, 30 °C max rise, 20% derated) | |
| current_rating (Maximum @ 28 AWG, all lines powered, 30 °C max rise, 20% derated) |

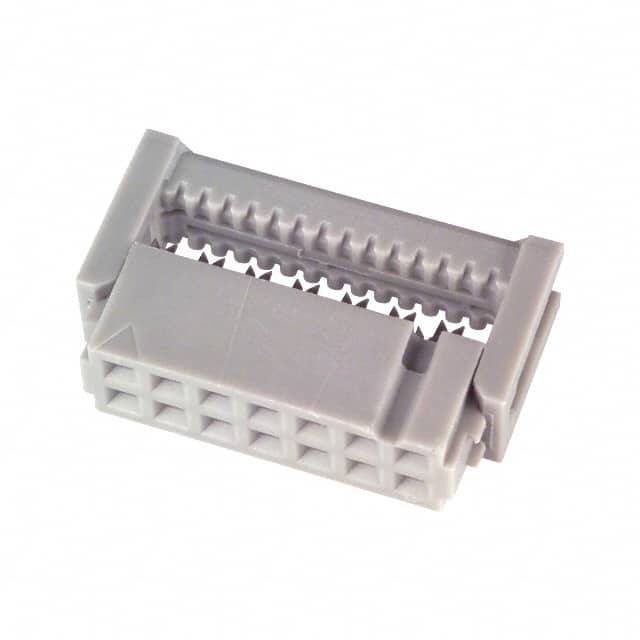

The 3M 89114-0001 is a 14 position IDC (Insulation Displacement Connection) ribbon cable socket from the 891 series. It features a 2.54mm pitch and 2 rows with 0.100" (2.54mm) row spacing, making it compatible with standard .050" pitch ribbon cable.
The connector uses a free hanging (in-line) mounting style and is designed for 26-28 AWG stranded wire. Contacts are phosphor bronze with 30µin (0.76µm) gold plating over nickel underplate. The housing is gray glass filled polyester (PBT) with a UL94 V-0 flammability rating.
Electrical ratings include a withstanding voltage of 1000V RMS at sea level and insulation resistance greater than 1 GΩ at 500V DC. Current rating depends on wire gauge and number of powered lines: 1.25A for 28 AWG and 1.50A for 26 AWG (all lines powered, 30°C rise, 20% derated).
The IDC termination eliminates the need for wire stripping or soldering, simplifying assembly. The connector includes a feed-through feature for daisy-chaining.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.52 | $1.52 |
| 10+ | $1.29 | $1.29 |
| 25+ | $1.21 | $1.21 |
| 50+ | $1.15 | $1.15 |
| 100+ | $1.09 | $1.09 |
| 250+ | $1.03 | $1.03 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.93 | $0.93 |
| 2,500+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
2.54mm (0.100") with 0.100" row spacing.
1.25A for 28 AWG and 1.50A for 26 AWG when all lines are powered and derated 20% with 30°C max rise.
1000V RMS at sea level.
Free hanging (in-line).
26-28 AWG stranded wire.
Gold, 30.0µin (0.76µm) over nickel.
