| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| UL | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage | |
| current_rating (Nominal @ 26 AWG, 1 line) | |
| current_rating (Nominal @ 28 AWG, 1 line) |

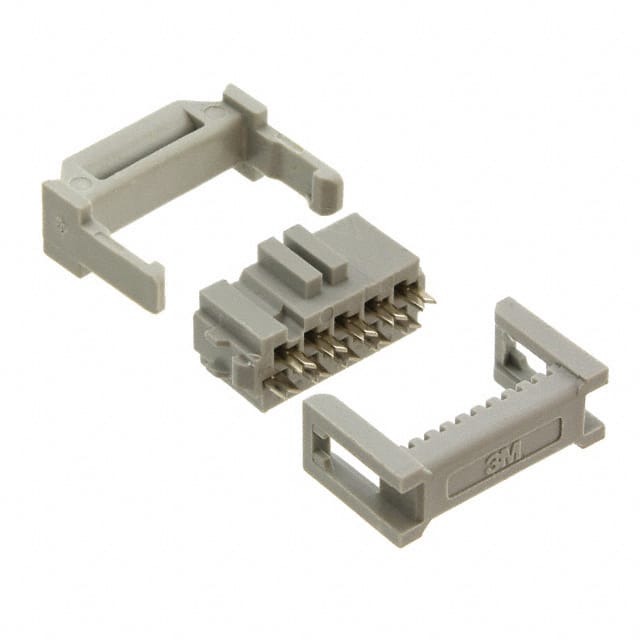

The 3M 89110-0103 is a 10-position IDC (Insulation Displacement Connector) socket designed for .050" pitch ribbon cable. It features a free hanging (in-line) mounting style and uses IDC termination for quick cable assembly. The connector has 2 rows with a pitch of 2.54mm (0.100") and row spacing of 2.54mm. Contacts are made of phosphor bronze with a gold finish of 30µin (0.76µm) over nickel underplating. The housing is glass-filled polyester (PBT) with a UL94 V-0 flammability rating, colored gray. Electrical ratings include a current rating of 3.00A per line for 28 AWG and 3.50A for 26 AWG, with an insulation resistance greater than 1x10^9 ohms at 500V DC and a withstanding voltage of 1000V RMS at sea level. The connector includes features such as feed through, polarizing key, and strain relief. It is UL recognized under file number E68080.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.61 | $1.61 |
| 25+ | $1.50 | $1.50 |
| 50+ | $1.43 | $1.43 |
| 100+ | $1.36 | $1.36 |
| 250+ | $1.28 | $1.28 |
| 500+ | $1.22 | $1.22 |
| 1,000+ | $1.16 | $1.16 |
| 2,500+ | $1.09 | $1.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100").
3.00A for 28 AWG and 3.50A for 26 AWG per line.
1000V RMS at sea level.
Free hanging (in-line) with IDC termination.
26-28 AWG stranded ribbon cable.
Gold plating, 30µin thickness.
