| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,802 pcs
|
3802 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | 632 | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Typical @ 26 AWG, 1 line) | |
| Current Rating (Typical @ 26 AWG, 6 adjacent lines) | |
| Current Rating (Typical @ 26 AWG, all lines) | |
| Current Rating (Typical @ 28 AWG, 1 line) | |
| Current Rating (Typical @ 28 AWG, 6 adjacent lines) | |
| Current Rating (Typical @ 28 AWG, all lines) | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage |

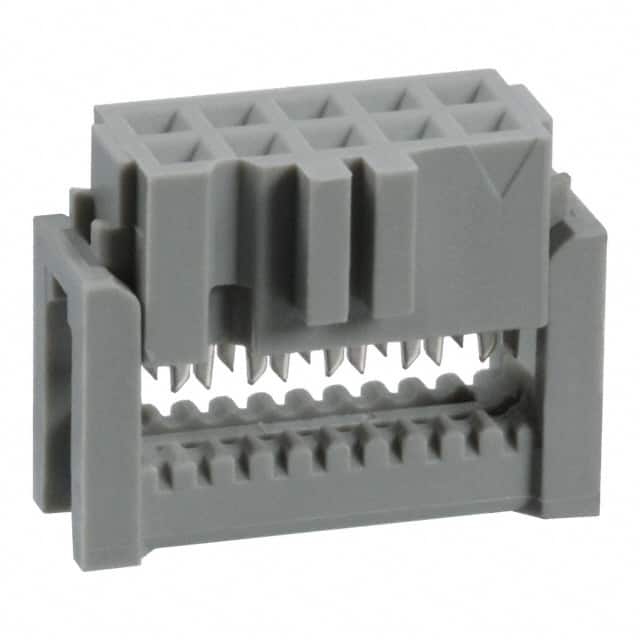

The 3M 89110-0101 is a 10-position IDC ribbon cable socket part of the 891 series. It features a free hanging (in-line) mounting style and IDC termination for 26-28 AWG stranded wire. The connector has a 2.54mm pitch with 2 rows and includes a feed through design with polarizing key. Contacts are phosphor bronze with 30µin gold plating over nickel. The housing is glass filled polyester (PBT) rated UL94 V-0, colored gray. Electrical ratings include current up to 3.5A per line at 26 AWG, insulation resistance >1x10^9 ohms, and withstanding voltage of 1000V RMS.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $0.93 | $0.93 |
| 25+ | $0.87 | $0.87 |
| 50+ | $0.83 | $0.83 |
| 100+ | $0.79 | $0.79 |
| 250+ | $0.74 | $0.74 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.67 | $0.67 |
| 2,500+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100 inch).
Varies by wire gauge and number of powered lines: up to 3.5A per line at 26 AWG, 1 line; derated for adjacent lines.
Withstanding voltage of 1000V RMS at sea level.
Free hanging (in-line).
IDC (Insulation Displacement Connection).
26-28 AWG stranded wire.
