| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

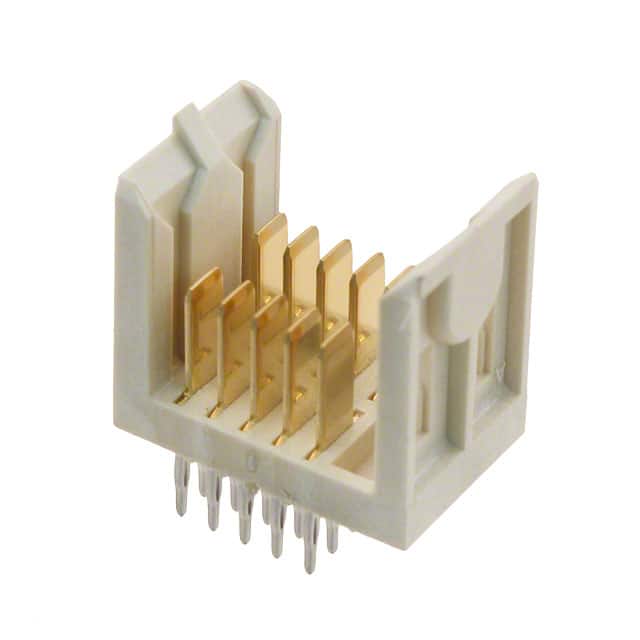

This Amphenol ICC 89099-114LF is a blade power header connector designed for backplane applications. It features 10 positions arranged in 5 rows with a 6.00mm pitch, suitable for high-power interconnection in PCB assemblies.
The connector uses a through hole mounting type with press-fit termination, providing a reliable solderless connection. The contacts are finished with 30.0µin gold, offering good corrosion resistance and stable electrical performance.
The housing is natural and white in color. The contact layout is 10 power positions, indicating all positions are power contacts. This connector is suitable for applications requiring a robust blade-style power interface in a compact 10-position configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.61 | $4.61 |
| 10+ | $3.92 | $3.92 |
| 48+ | $3.51 | $3.51 |
| 96+ | $3.34 | $3.34 |
| 144+ | $3.25 | $3.25 |
| 288+ | $3.09 | $3.09 |
| 528+ | $2.96 | $2.96 |
| 1,008+ | $2.83 | $2.83 |
| 2,544+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 10 positions, all loaded as power contacts.
The pitch is 6.00mm (0.236 inches).
This connector uses through hole mounting with press-fit termination.
The contact finish is gold with a thickness of 30.0 microinches (0.76 micrometers).
The connector has 5 rows of contacts.
